Parking Brake Lever Removal/Installation

WARNING: This page is about a different car, the 2005 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the propeller shaft. (See PROPELLER SHAFT REMOVAL/INSTALLATION .)
  2. Remove the front console.
  3. Remove in the order indicated in the table.
  4. Install in the reverse order of removal.
  5. After installation, inspect the parking brake stroke and adjust if necessary.

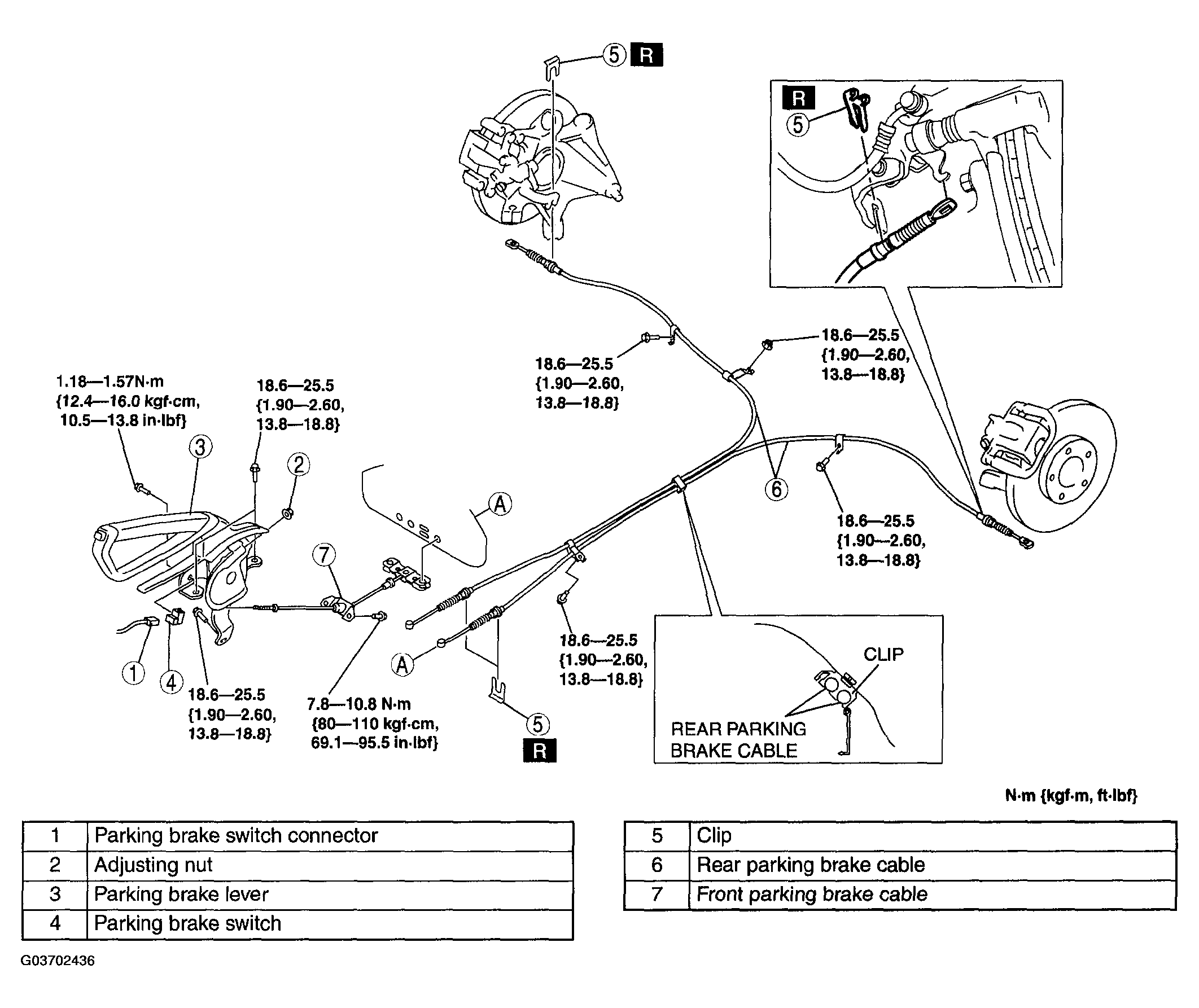

    Fig 1: Parking Brake Lever Removing Sequence With Torque Specifications
    G03702436Courtesy of MAZDA MOTORS CORP.
