Parking Brake Lever Adjustment

WARNING: This page is about a different car, the 2005 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
  1. Depress the brake pedal several times.
  2. Remove the service hole cover of the rear console.
  3. Turn the adjusting nut and adjust the parking brake lever.
  4. After adjustment, pull the parking brake lever one notch and verify that the parking brake warning light illuminates.
  5. Verify that the rear brakes do not drag.

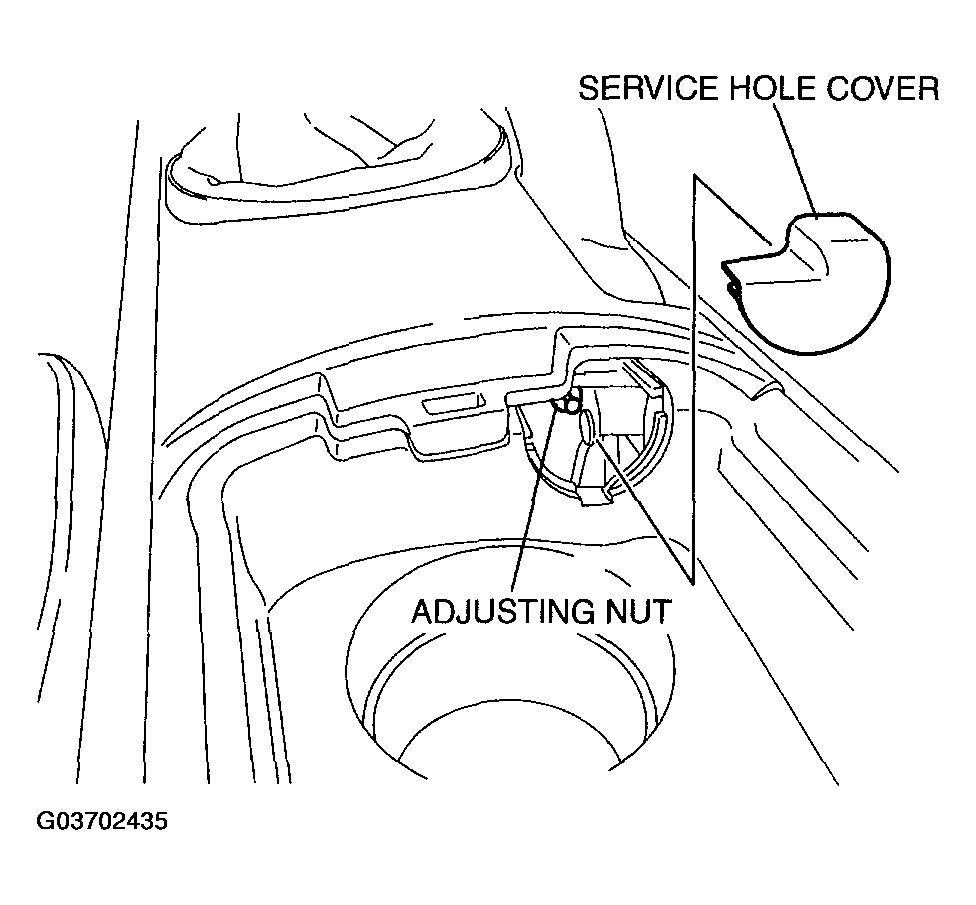

    Fig 1: Removing Service Hole Cover Of Rear Console
    G03702435Courtesy of MAZDA MOTORS CORP.
