For Steel Propeller Shaft

WARNING: This page is about a different car, the 2005 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front tunnel member.
  2. Remove the rear tunnel member.
  3. Remove the exhaust pipe and the silencer.

    (See EXHAUST SYSTEM REMOVAL/INSTALLATION .)

  4. Remove the heat insulator.
  5. Remove in the order indicated in the table.
  6. Install in the reverse order of removal.

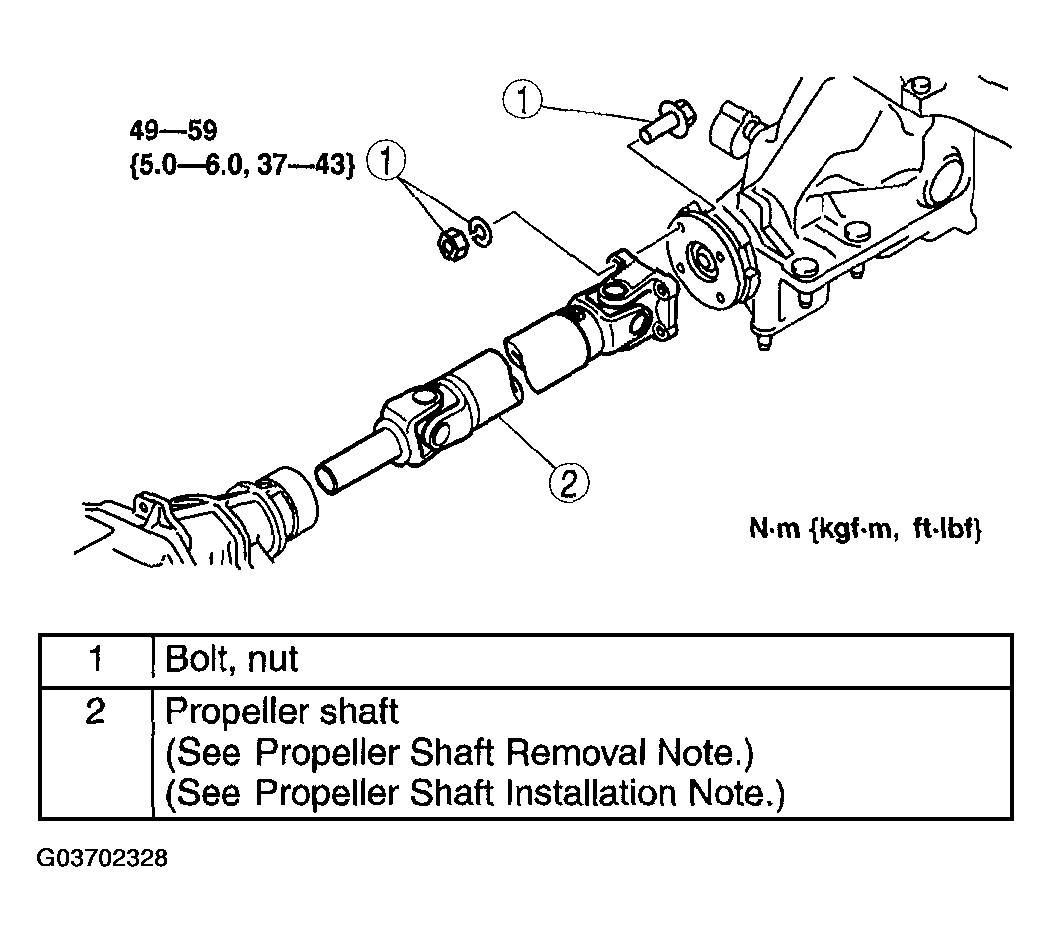

    Fig 1: Propeller Shaft Removing Sequence With Torque Specification
    G03702328Courtesy of MAZDA MOTORS CORP.
