Bearing Cap Disassembly Note

WARNING: This page is about a different car, the 2005 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
  1. Mark the bearing cap and differential carrier for proper installation.

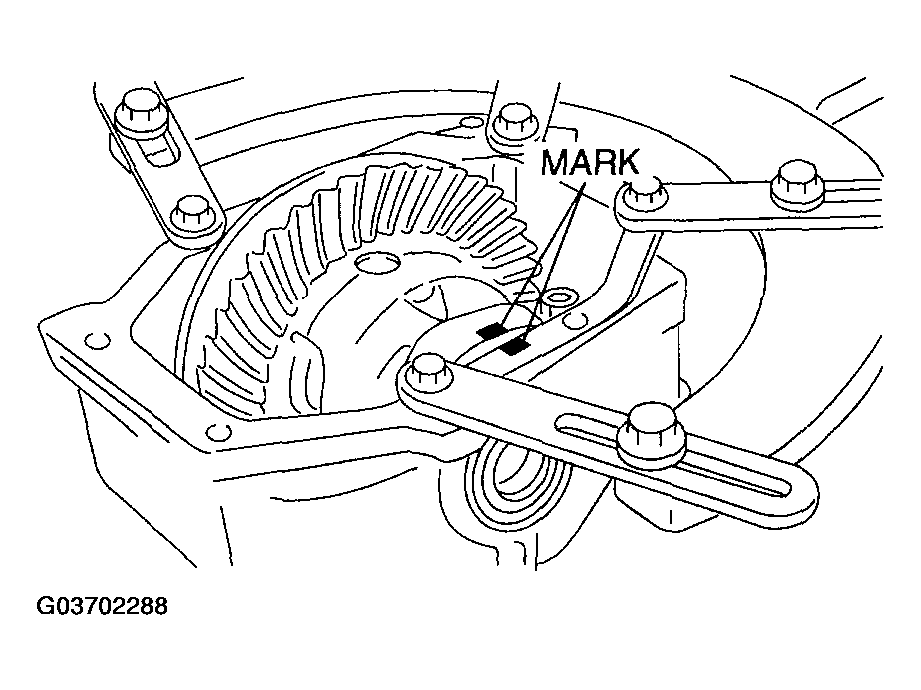

    Fig 1: Marking Bearing Cap And Differential Carrier
    G03702288Courtesy of MAZDA MOTORS CORP.
