Dust Cover Installation Note

WARNING: This page is about a different car, the 2005 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
  1. Align the new and old dust covers and place alignment marks on the new dust cover.
  2. Align the marks on the new dust cover and rear knuckle.

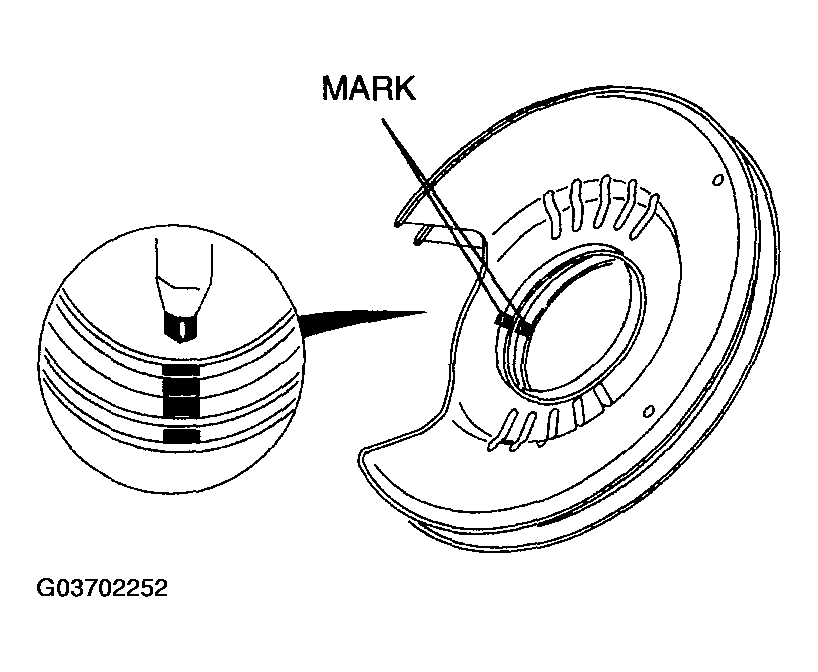

    Fig 1: Aligning Marks On Dust Cover And Rear Knuckle
    G03702252Courtesy of MAZDA MOTORS CORP.
  3. Press the new dust cover onto the rear knuckle using the SSTs.
    Fig 2: Pressing Dust Cover Onto Rear Knuckle Using SST
    G03702253Courtesy of MAZDA MOTORS CORP.
