Brake Caliper Component Removal Note

WARNING: This page is about a different car, the 2005 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
  1. Suspend the brake caliper component using a cable.

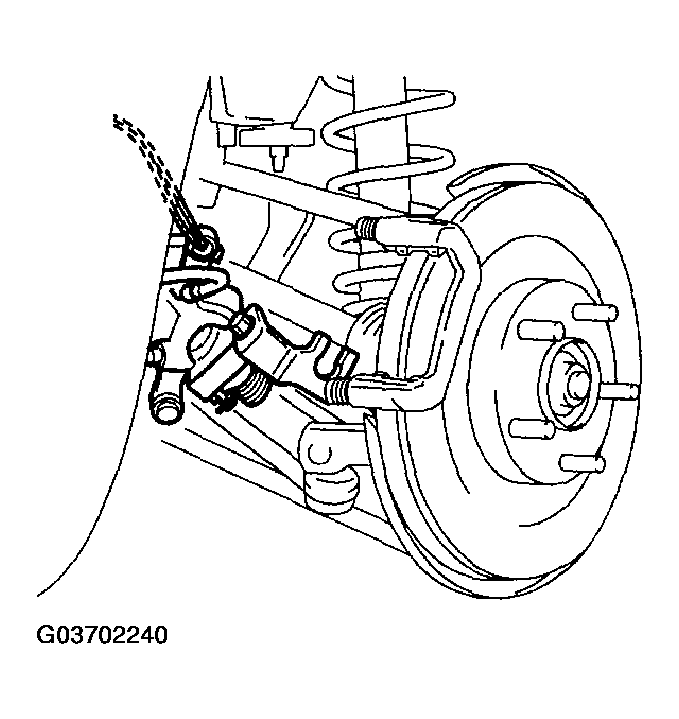

    Fig 1: Suspending Brake Caliper Component Using Cable
    G03702240Courtesy of MAZDA MOTORS CORP.
