Rear Shock Absorber and Coil Spring Installation Note

WARNING: This page is about a different car, the 2005 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

Install the coil spring with the lead lower end of the lower spring seat facing the direction shown in the figure.

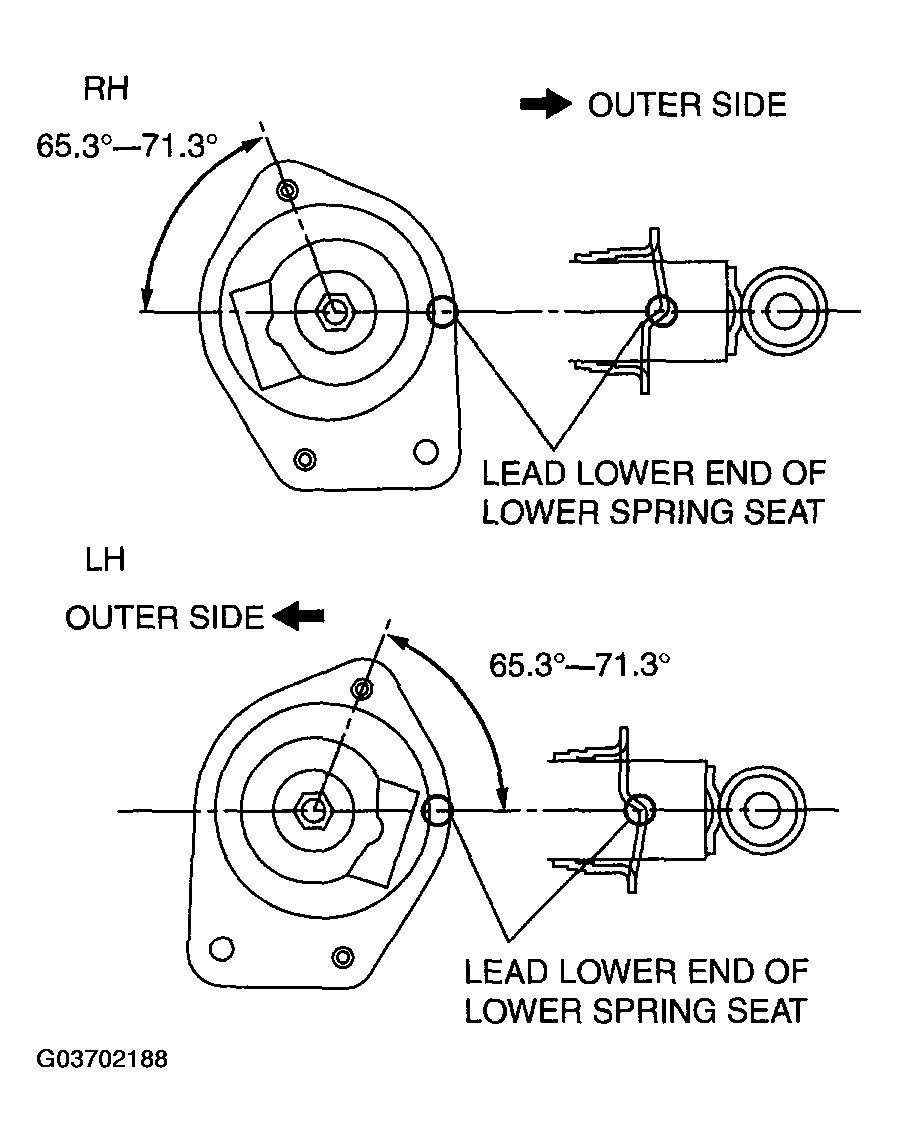

Fig 1: Installing The Coil Spring With The Lead Lower End Of The Lower Spring Seat Facing The Right Direction
Courtesy of MAZDA MOTORS CORP.
