Rear Shock Absorber And Coil Spring Removal/Installation: Notes

WARNING: This page is about a different car, the 2005 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Performing the following procedures without first removing the ABS wheel-speed sensor may possibly cause an open circuit in the wiring harness if it is pulled by mistake. Before operations, remove the ABS wheel-speed sensor (axle side), and move the sensor away from the harnesses.

Remove in the order indicated in the table.
Install in the reverse order of removal.

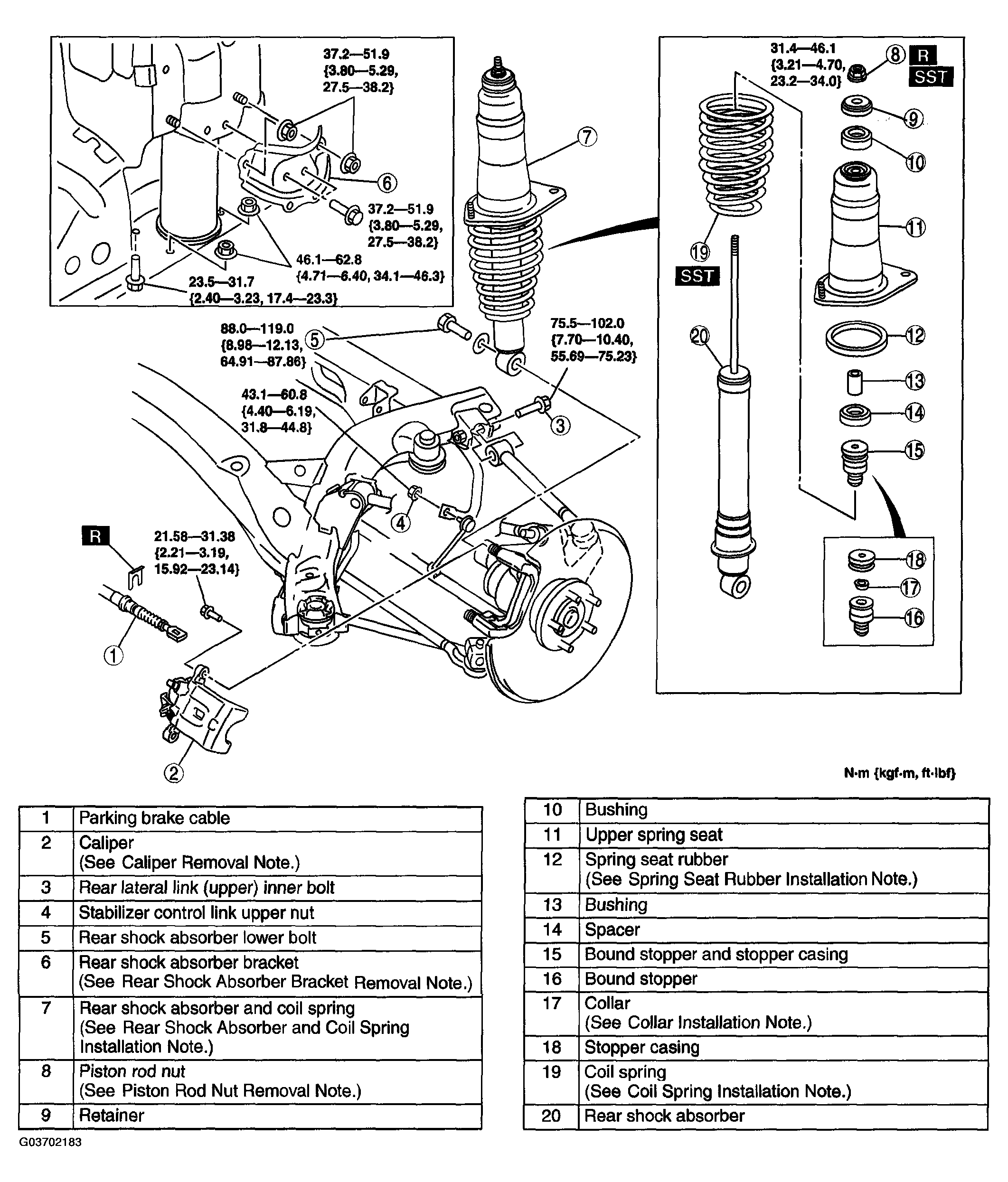

Fig 1: Rear Shock Absorber And Coil Spring Replacement Components With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
