Rear Lateral Link (Upper) Ball Joint Removal Note

WARNING: This page is about a different car, the 2005 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

Using the SST , disconnect the rear lateral link (upper) ball joint.
NOTE:
- When removing the rear lateral link (upper) ball joint, the rear knuckle bushing may also come off. If it comes off, replace the rear knuckle.

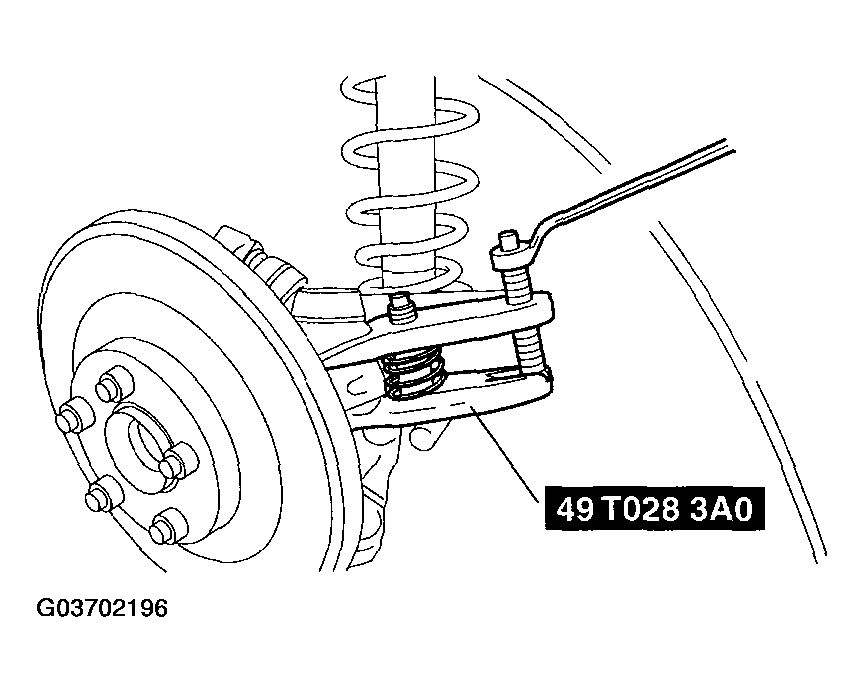

Fig 1: Disconnecting The Rear Lateral Link Ball Joint (Upper)
Courtesy of MAZDA MOTORS CORP.
