Rear Crossmember Component Removal Note

WARNING: This page is about a different car, the 2005 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

Be sure that the crossmember component is securely supported by the jack. If not securely supported, the crossmember component could fall, resulting in serious injury or death, and damage to the vehicle.

Support the rear crossmember with the jack, and remove the bolt.
Remove the rear crossmember component.

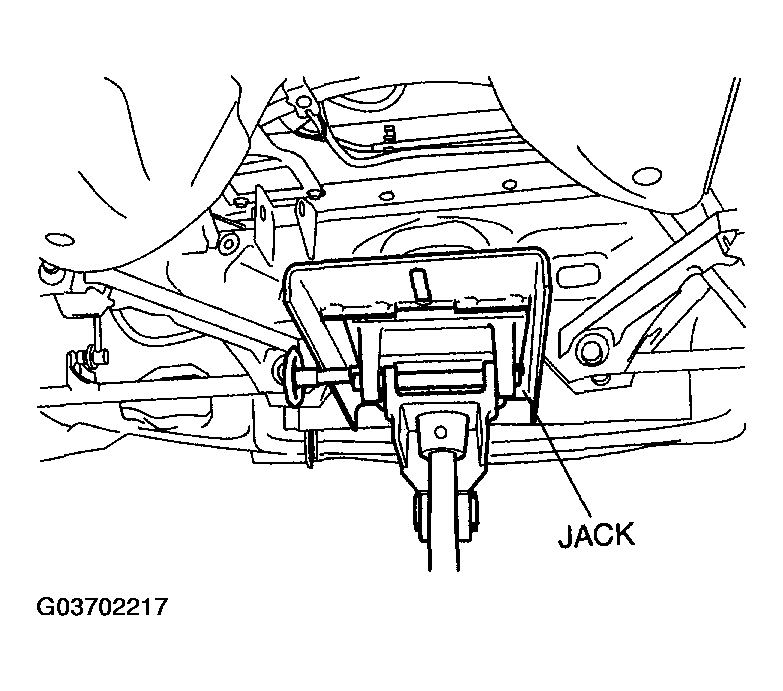

Fig 1: Supporting The Rear Crossmember With The Jack
Courtesy of MAZDA MOTORS CORP.
