Rear Axle Component Removal Note

WARNING: This page is about a different car, the 2005 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

Support the knuckle using a jack.
Using the SST , disconnect the rear trailing link (upper) ball joint.
Remove the rear trailing link (lower) outer bolt.

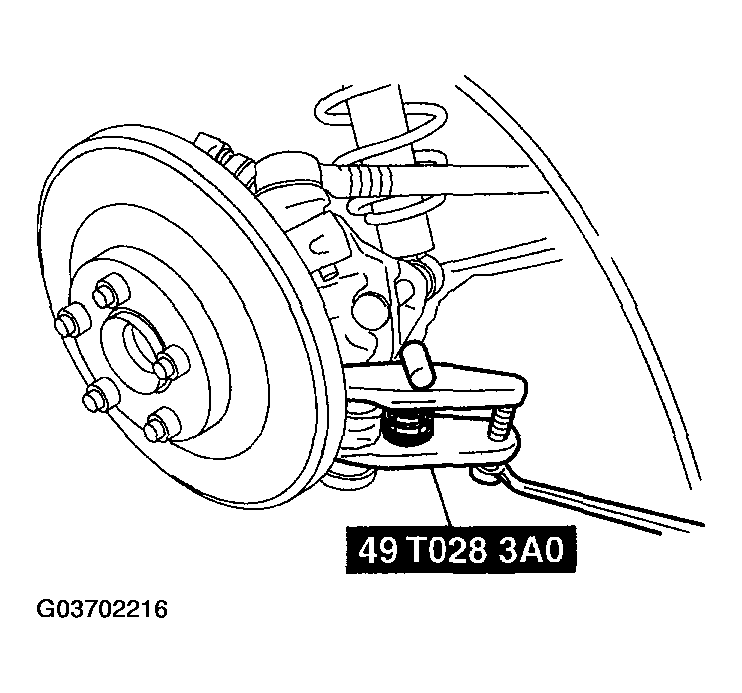

Fig 1: Disconnecting The Rear Trailing Link (Upper) Ball Joint
Courtesy of MAZDA MOTORS CORP.
Using the SST , disconnect the rear lateral link (upper) ball joint.

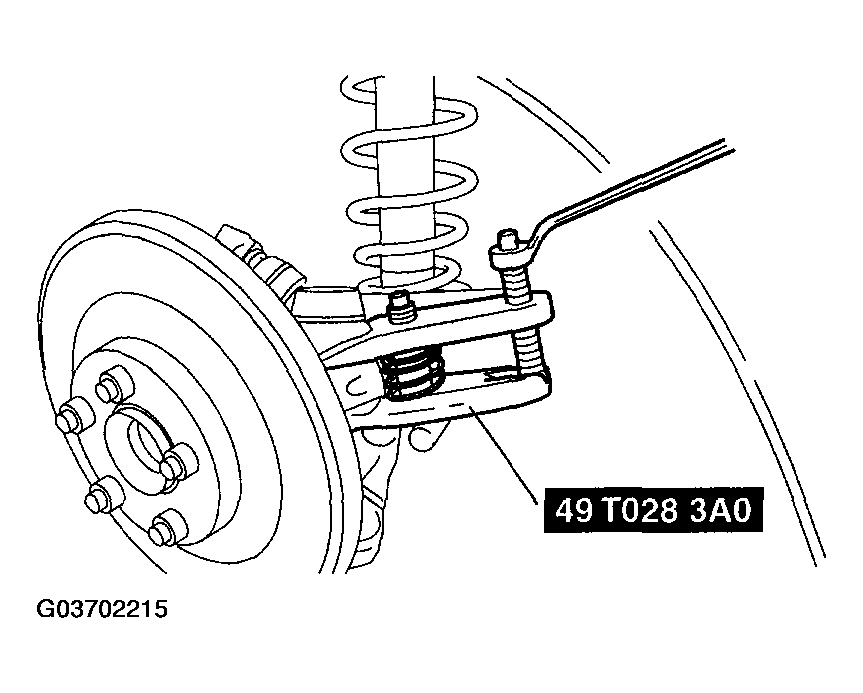

Fig 2: Disconnecting The Rear Lateral Link Ball Joint (Upper)
Courtesy of MAZDA MOTORS CORP.
Using the SST , disconnect the rear lateral link (lower) ball joint.
Remove the toe control link outer bolt.
Remove the shock absorber lower bolt.
Remove the rear axle component.

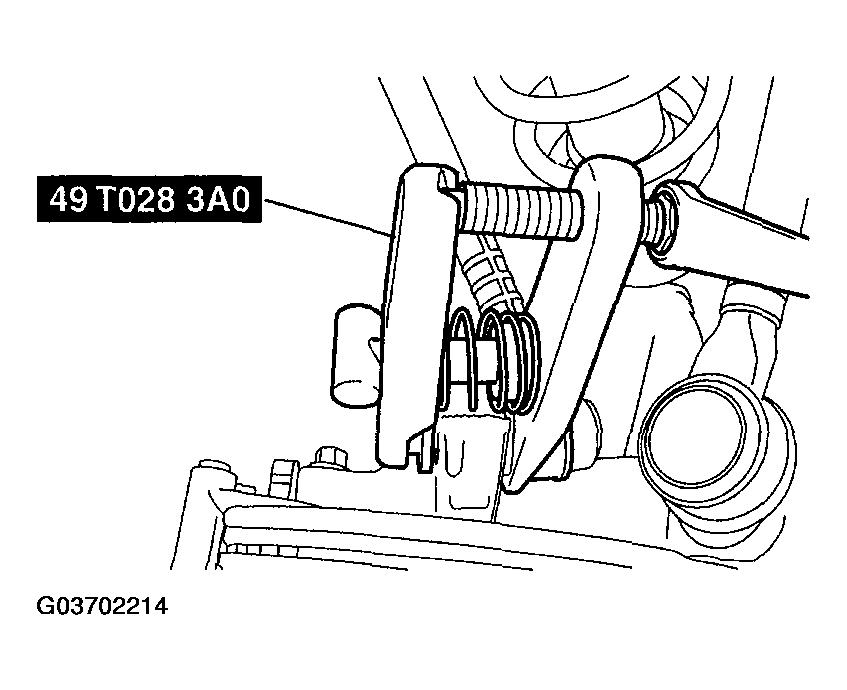

Fig 3: Disconnecting The Rear Lateral Link Ball Joint (Lower)
Courtesy of MAZDA MOTORS CORP.
