No.3 Bushing Installation Note

WARNING: This page is about a different car, the 2005 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

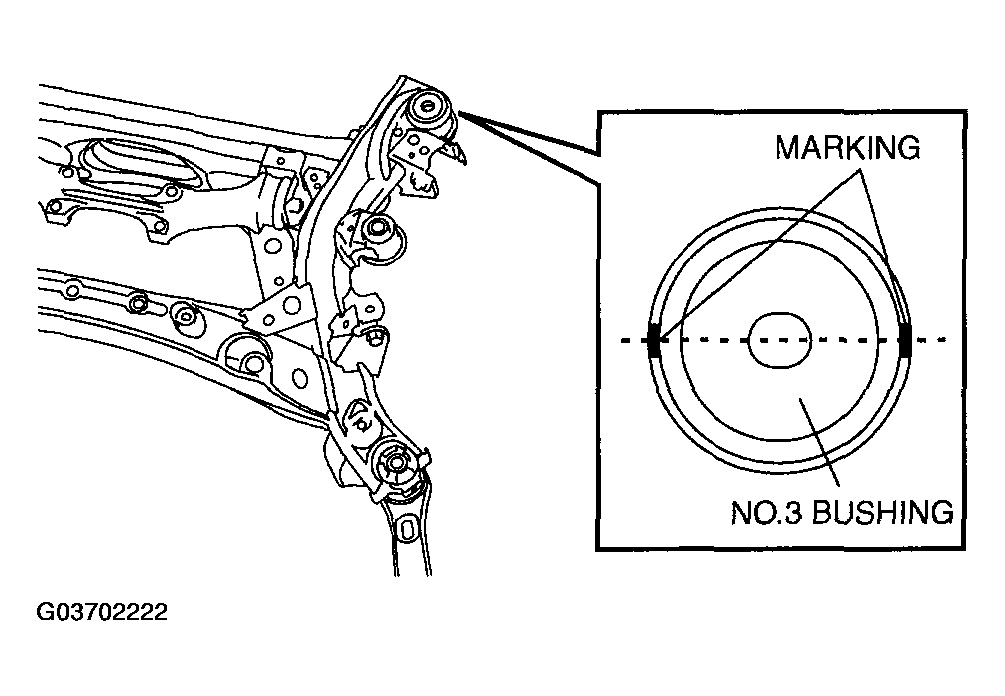

Install the new bushing according to the marking made during bushing removal.

Fig 1: Installing The New Bushing According To The Marking Made During Bushing
Courtesy of MAZDA MOTORS CORP.
Press fit the bushing using the SST.

Fig 2: Pressing Fit The Bushing
Courtesy of MAZDA MOTORS CORP.
