No.2 Bushing Removal Note

WARNING: This page is about a different car, the 2005 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

Mark the rear crossmember with the bushing hole aligned as shown in the figure.

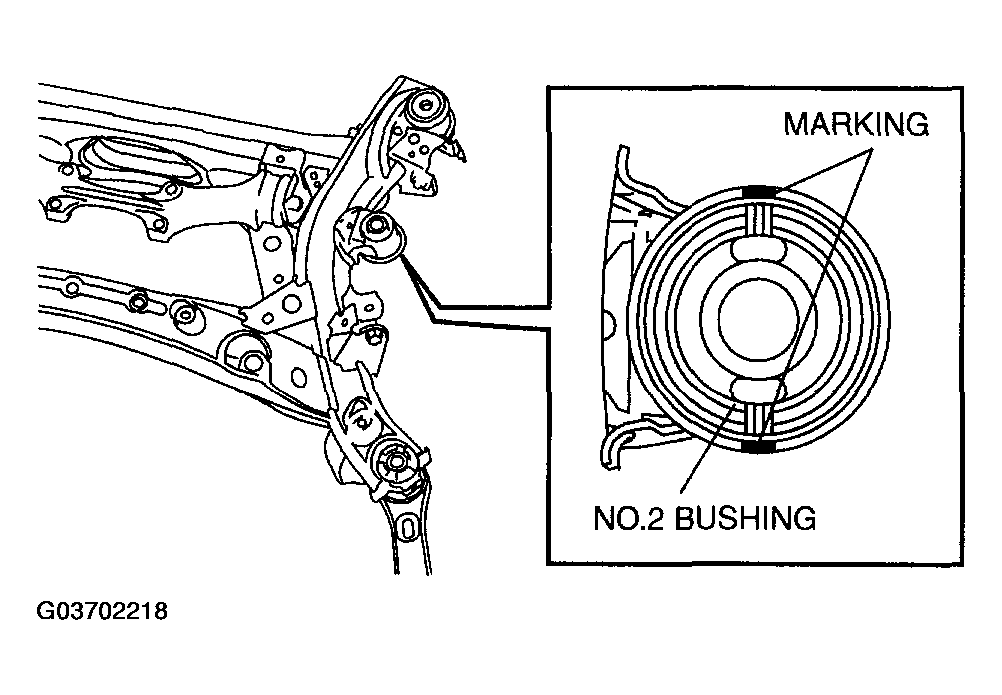

Fig 1: Marking The Rear Crossmember With The Bushing Hole
Courtesy of MAZDA MOTORS CORP.
Remove the bushing using the SST .

Fig 2: Removing No. 2 The Bushing
Courtesy of MAZDA MOTORS CORP.
