Front Upper Arm Ball Joint Removal Note

WARNING: This page is about a different car, the 2005 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

Remove the front upper arm ball joint from the steering knuckle using the SST.

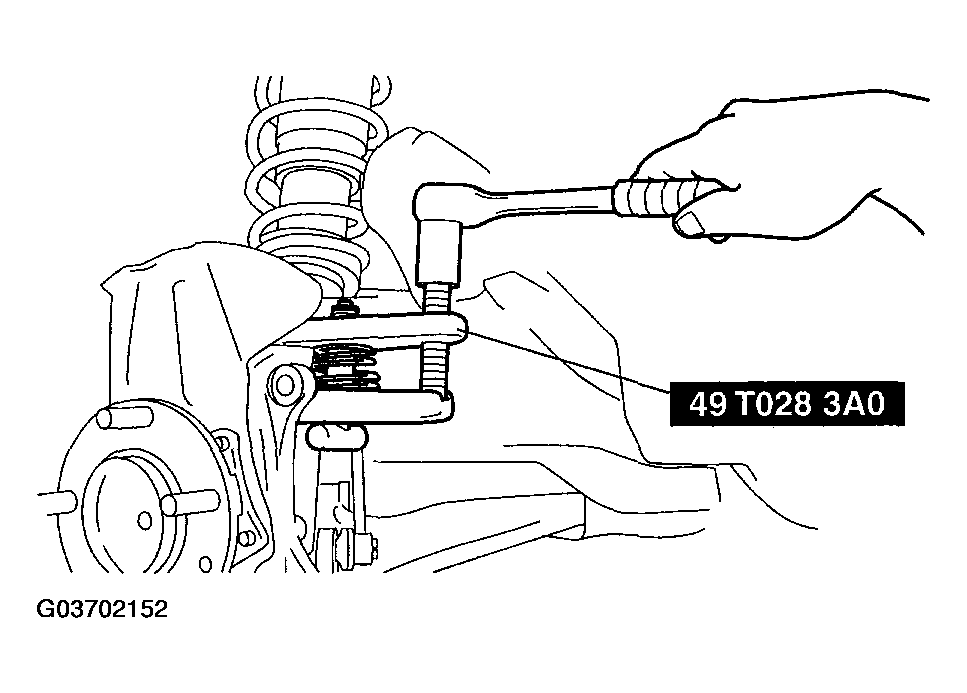

Fig 1: Removing The Front Upper Arm Ball Joint
Courtesy of MAZDA MOTORS CORP.
