Upper Arm Ball Joint Removal Note

WARNING: This page is about a different car, the 2005 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
  1. Loosen the bolts on the vehicle side.
  2. Disconnect the upper arm ball joint using the SST.

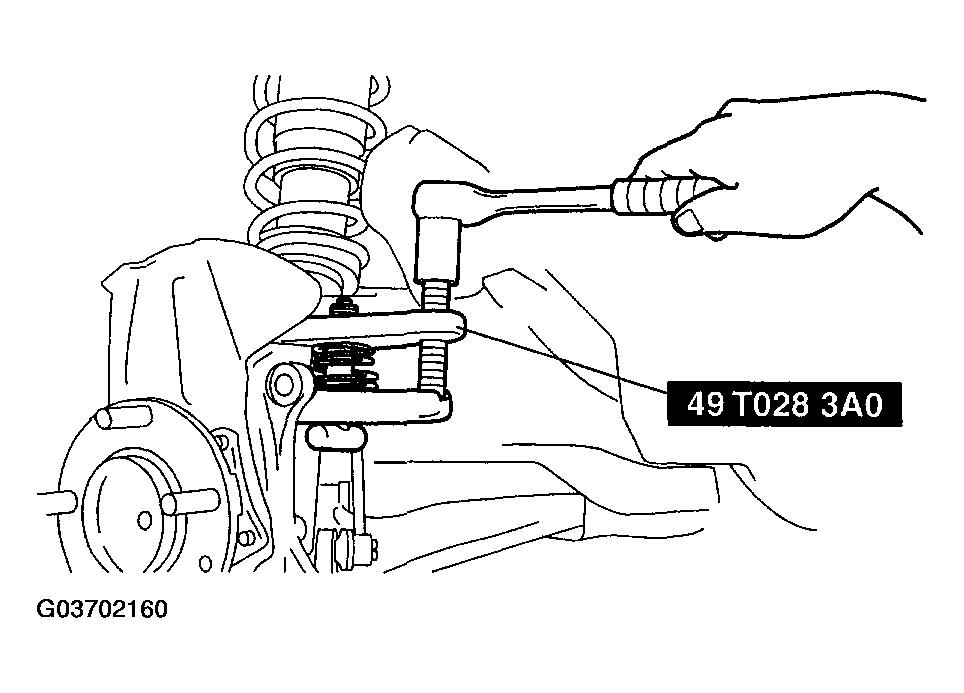

    Fig 1: Disconnecting The Upper Arm Ball Joint Using SST
    G03702160Courtesy of MAZDA MOTORS CORP.
