Front Lower Arm Ball Joint Removal Note

WARNING: This page is about a different car, the 2005 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the front lower arm ball joint from the steering knuckle using the SST.
NOTE:
- When removing the front lower arm ball joint, the steering knuckle bushing may also come off. If it comes off, replace the steering knuckle.

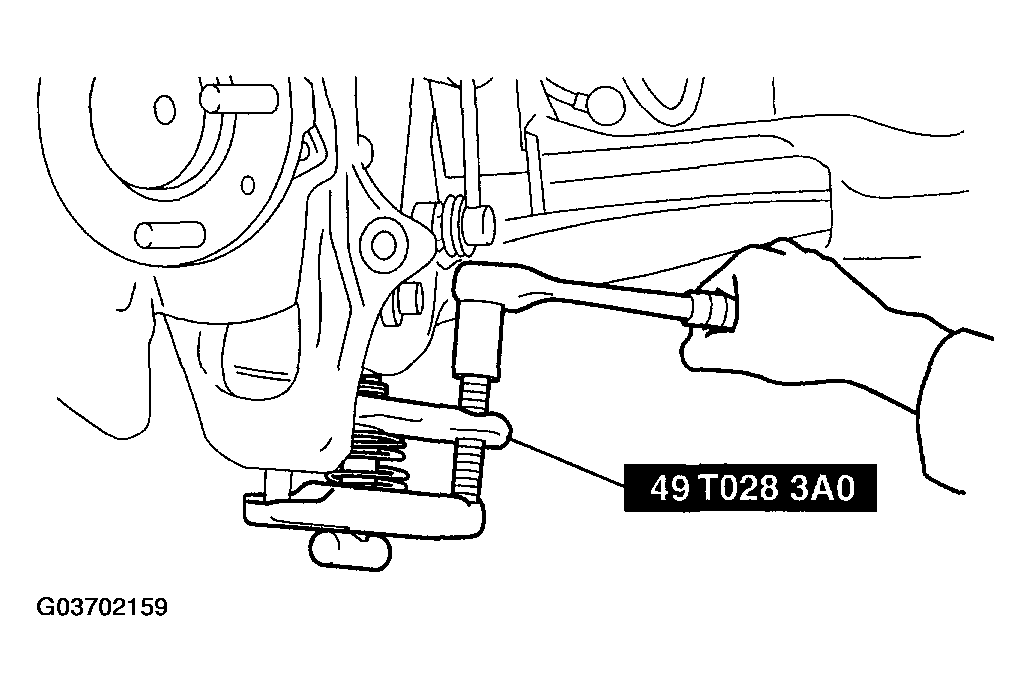

Fig 1: Disconnecting The Front Lower Arm Ball Joint From The Steering Knuckle Using SST
Courtesy of MAZDA MOTORS CORP.
