Bushing (Front Side) Removal Note

WARNING: This page is about a different car, the 2005 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

Cut off the stopper plate rubber using a razor.

Fig 1: Cutting Off The Stopper Plate Rubber Using Razor
Courtesy of MAZDA MOTORS CORP.

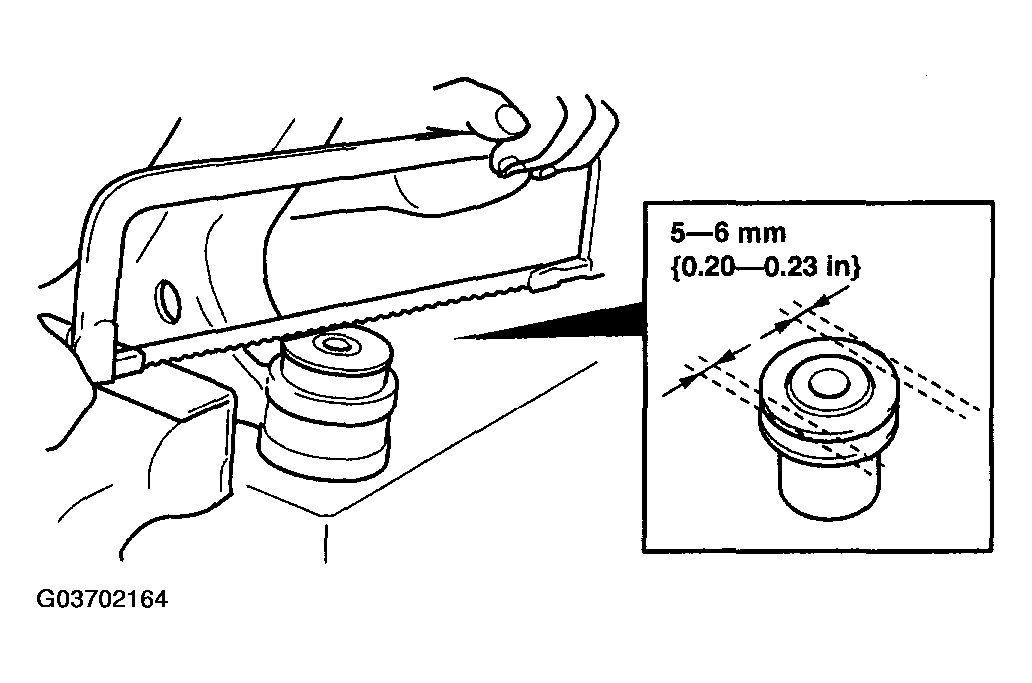

Cut off 5-6 mm {0.20-0.23 in} from each side of the knob end of the bushing using a hacksaw.

Fig 2: Cutting Off Knob End Of The Bushing Using Hacksaw
Courtesy of MAZDA MOTORS CORP.
