Evaporative Emission (EVAP) Control System Removal/Installation: Notes

WARNING: This page is about a different car, the 2005 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear differential. (See REAR DIFFERENTIAL REMOVAL/INSTALLATION .)
  2. Remove in the order indicated in the table.
  3. Install in the reverse order of removal.

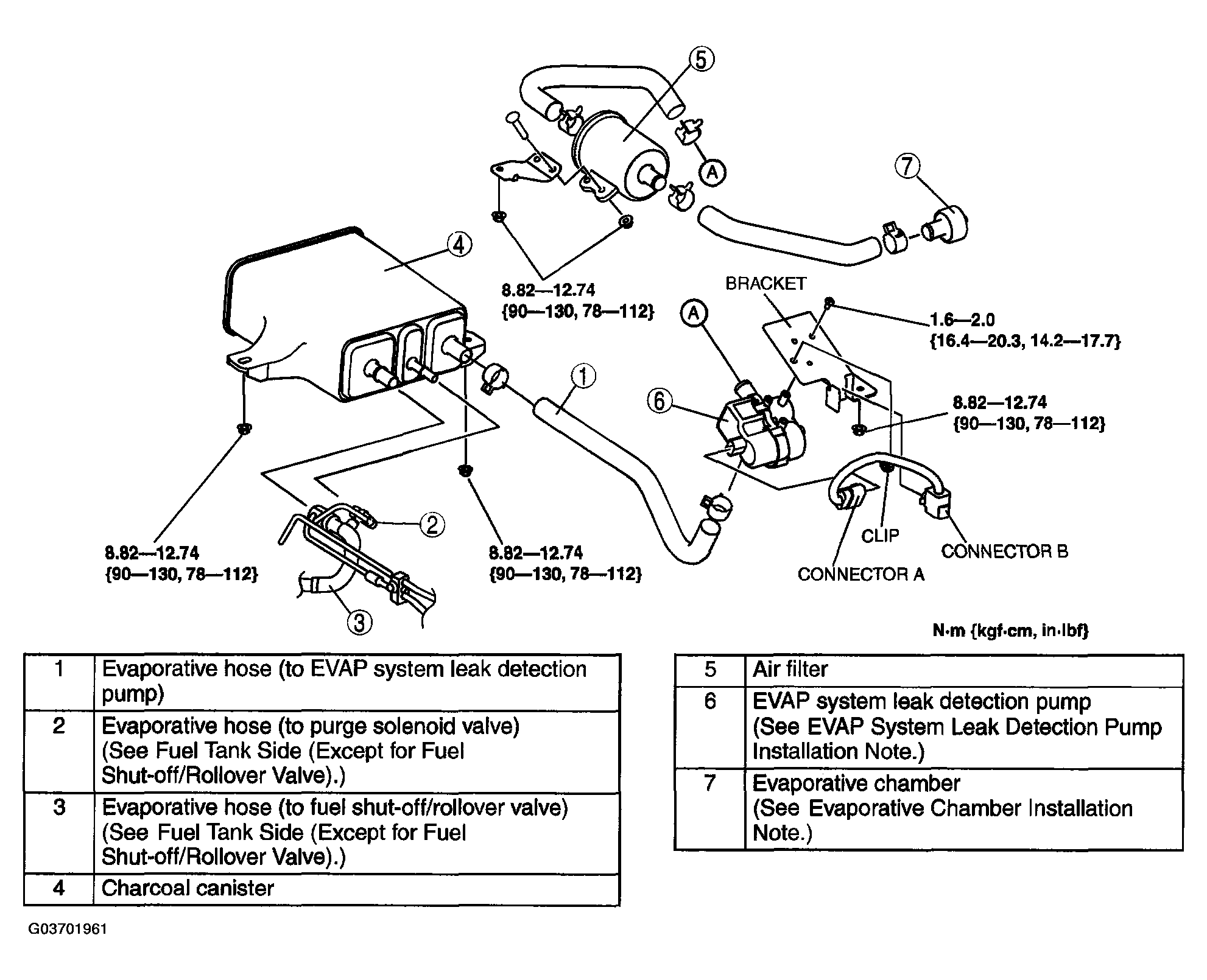

    Fig 1: Evaporative Emission Control System With Torque Specifications
    G03701961Courtesy of MAZDA MOTORS CORP.
