Resistance Inspection

WARNING: This page is about a different car, the 2005 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

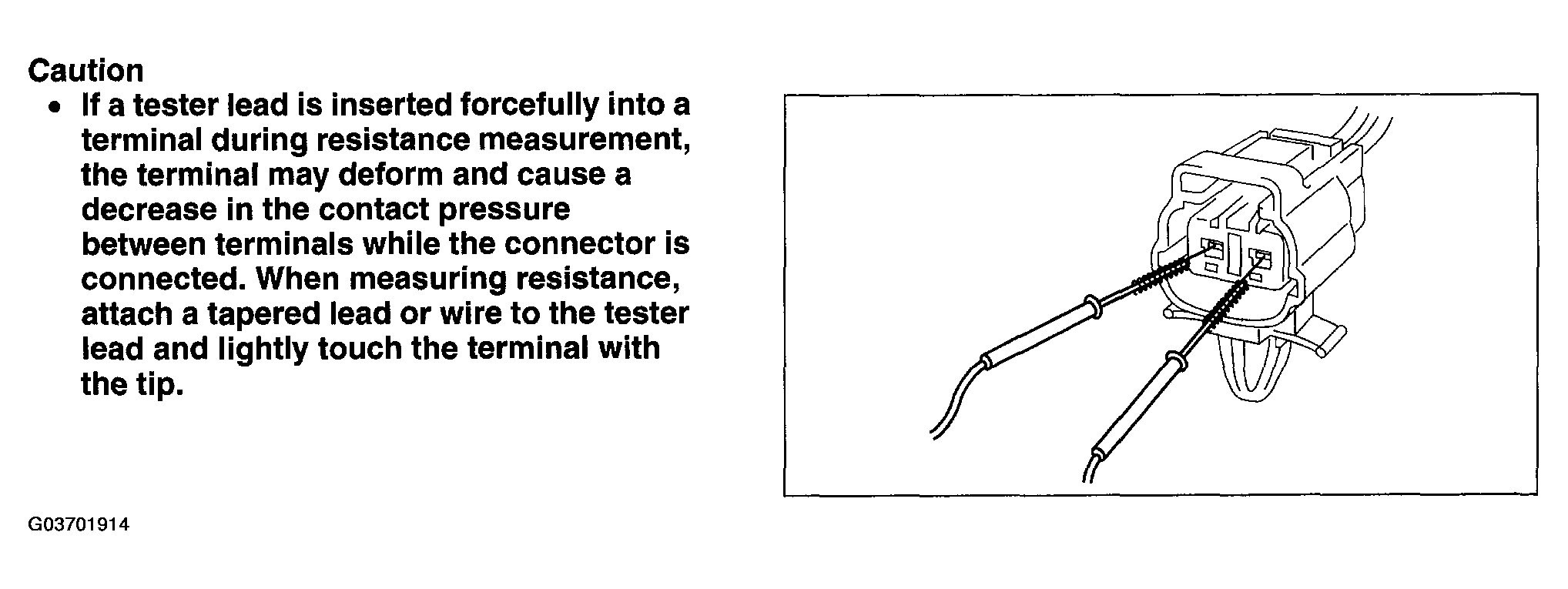

Fig 1: Connector Terminal Caution

Courtesy of MAZDA MOTORS CORP.

Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION .)
Remove the fuel pump resister. (See FUEL PUMP RESISTOR REMOVAL/INSTALLATION .)
Verify that the continuity between the fuel pump resister terminal A and B is within the specification.

Fig 2: Identifying Fuel Pump Resister Terminal
Courtesy of MAZDA MOTORS CORP.
- If not within the specification, replace the fuel resistor.
Fuel pump resistor continuity
1. 0.304-0.336 ohms (20 °C {68 °F})
