Fresh-air Duct Installation Note

WARNING: This page is about a different car, the 2005 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

Install the clips.
Tighten the bolt to the specified torque.

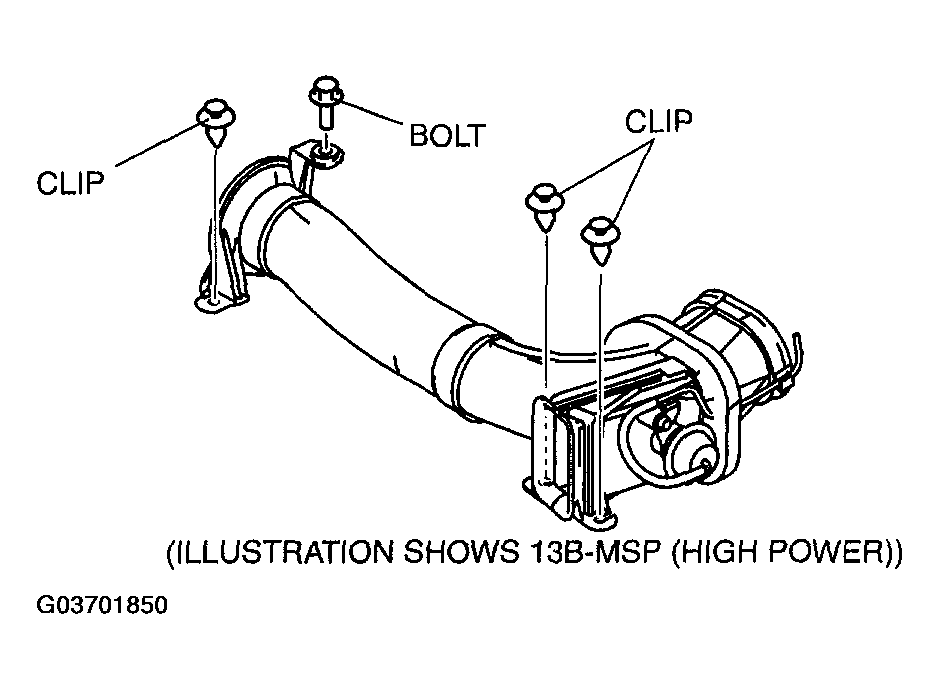

Fig 1: Installing Intake Tube
Courtesy of MAZDA MOTORS CORP.

Tightening torque
1. 7.8-10.8 N.m {79-111 kgf.cm, 69.0-95.6 in.lbf}
