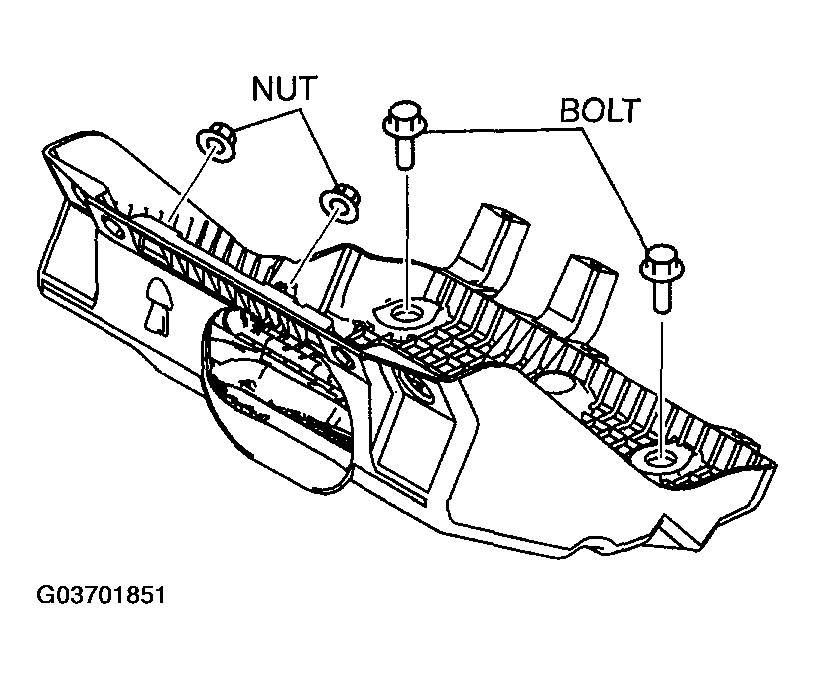

Air Cleaner Insulator Installation Note
WARNING: This page is about a different car, the 2005 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
- Temporarily tighten nuts.
- Temporarily tighten bolts.
- Tighten the nuts to the specified torque.
- Tighten the bolts to the specified torque.
Courtesy of MAZDA MOTORS CORP.
Tightening torque
- 7.8-10.8 N.m {79-111 kgf.cm, 69.0-95.6 in.lbf}
