Fresh-air Duct Inspection
WARNING: This page is about a different car, the 2005 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the fresh air duct. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .)

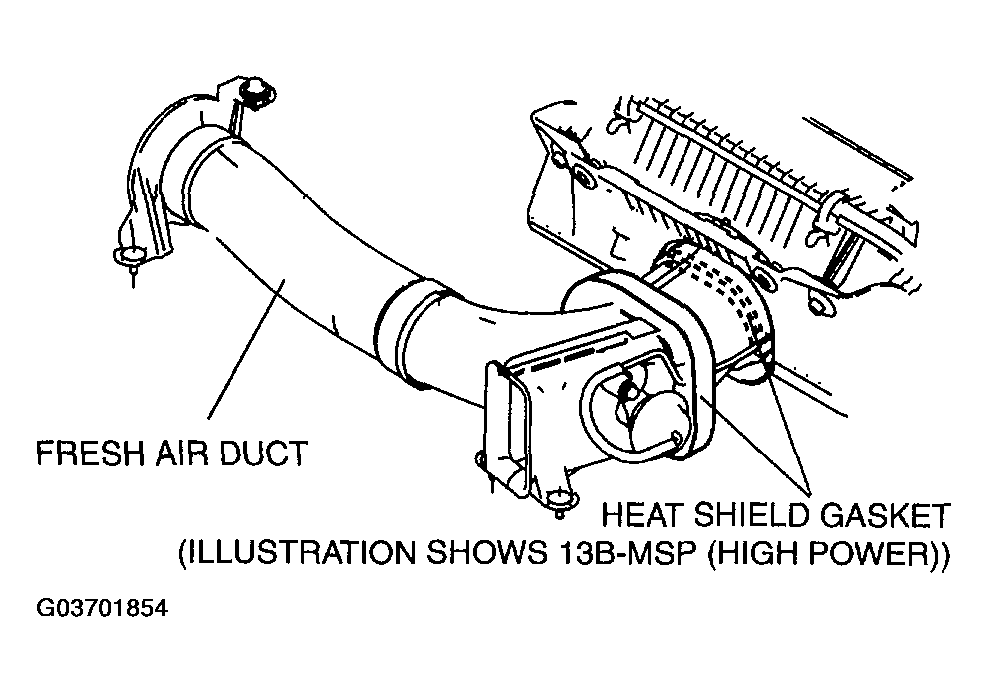

- Verify that there is no damage or peeling on the heat shield gasket for the fresh air duct.
- If there is any abnormality, repair or replace the fresh air duct.
