Air Hose Inspection

WARNING: This page is about a different car, the 2005 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
  1. Visually inspect the following items:
    • If there is any abnormality, reinstall or replace the air hose.
      • Is there any looseness or disconnection of air hose and air cleaner cover connecting parts?
      • Is there any looseness or disconnection of air hose and throttle body connecting parts?
      • Is the hose correctly installed?
      • Are there any cracks or splits in the air hose?

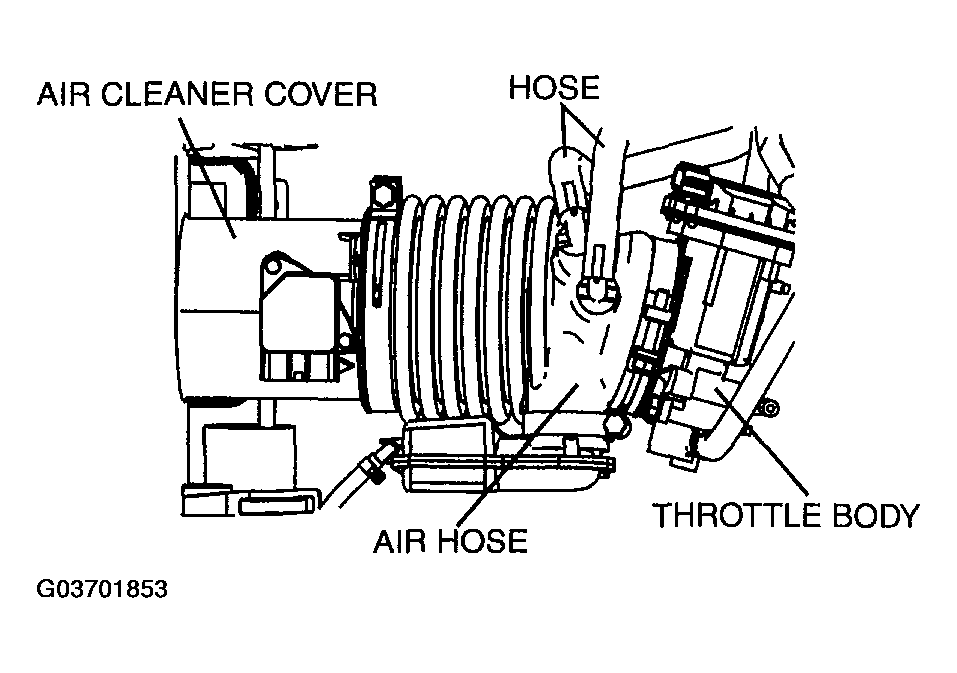

    Fig 1: Identifying Air Hose, Throttle Body And Air Cleaner Cover
    G03701853Courtesy of MAZDA MOTORS CORP.
