Intake Manifold Installation Note

WARNING: This page is about a different car, the 2005 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

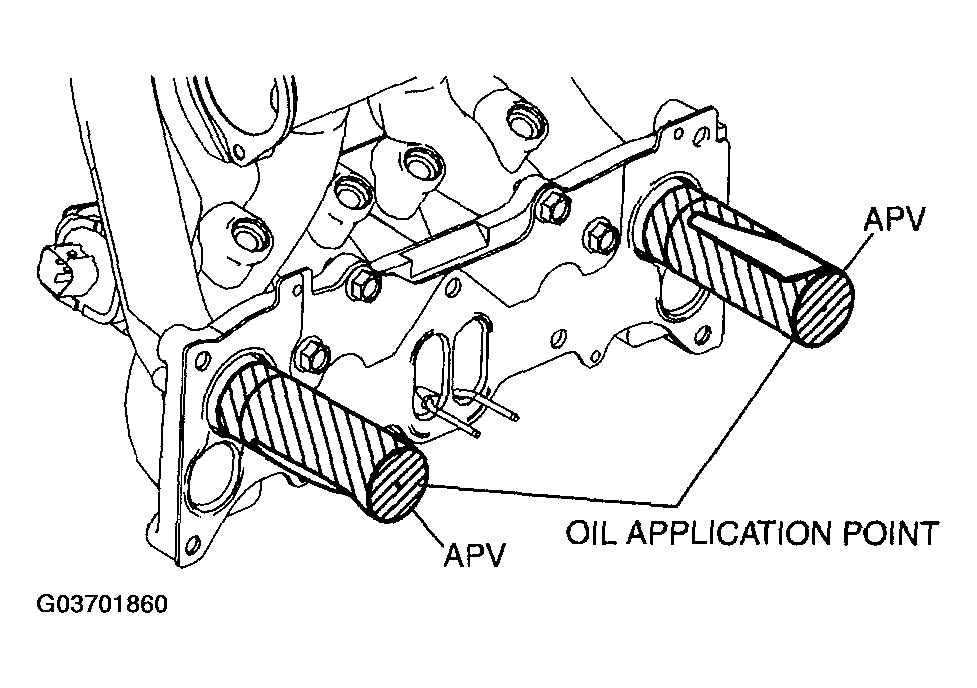

Apply oil thoroughly to the APVs (13B-MSP (HIGH POWER)) as shown in the figure.

Fig 1: Identifying Intake Manifold (APV)
Courtesy of MAZDA MOTORS CORP.
Tighten the bolts in the order shown in the figure
Retighten the No. 1 bolt after tighten the all bolts.
Tightening torque
1. 18.6-25.5 N.m {1.8-2.6 kgf.m, 13.7-18.9 ft.lbf}

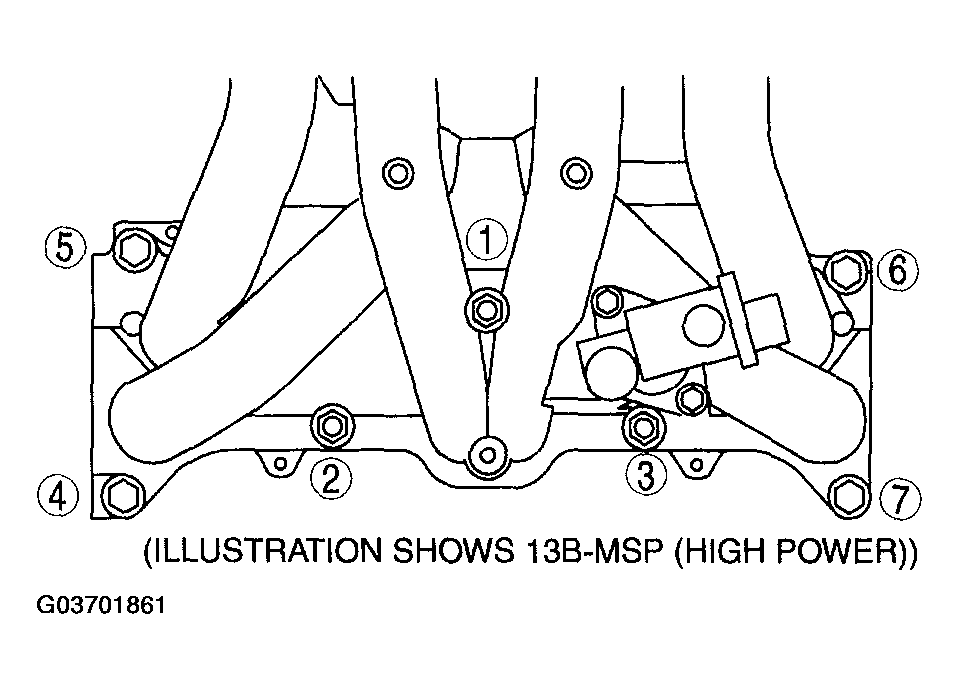

Fig 2: Tightening Bolts Of Intake Manifold
Courtesy of MAZDA MOTORS CORP.
