Intake Manifold Disassembly/Assembly: Notes

WARNING: This page is about a different car, the 2005 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove in the order indicated in the table.
  2. Install in the reverse order of removal.

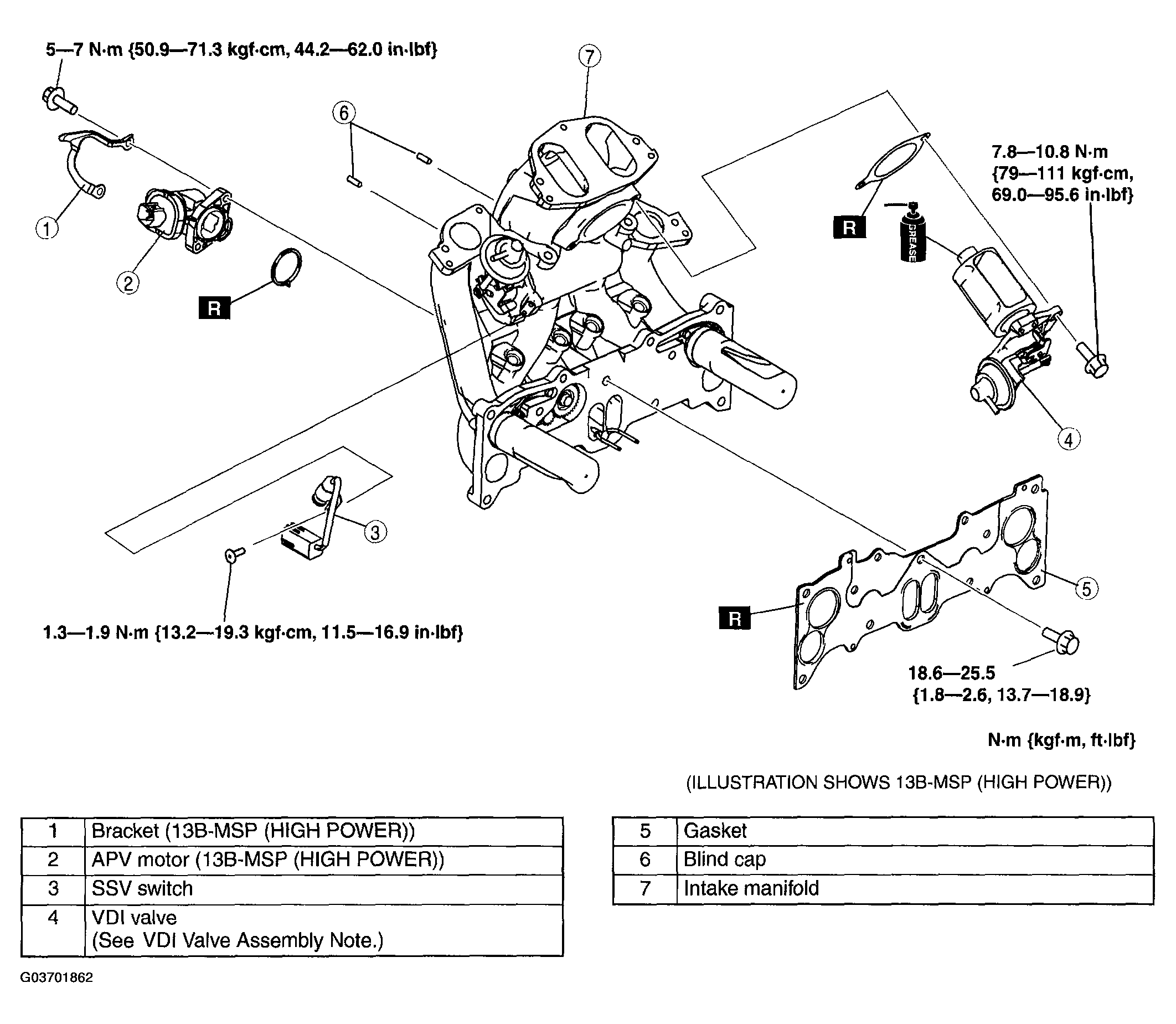

    Fig 1: Disassembling/Assembly Intake Manifold With Torque Specifications
    G03701862Courtesy of MAZDA MOTORS CORP.
