Circuit Open/Short Inspection: Notes

WARNING: This page is about a different car, the 2005 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

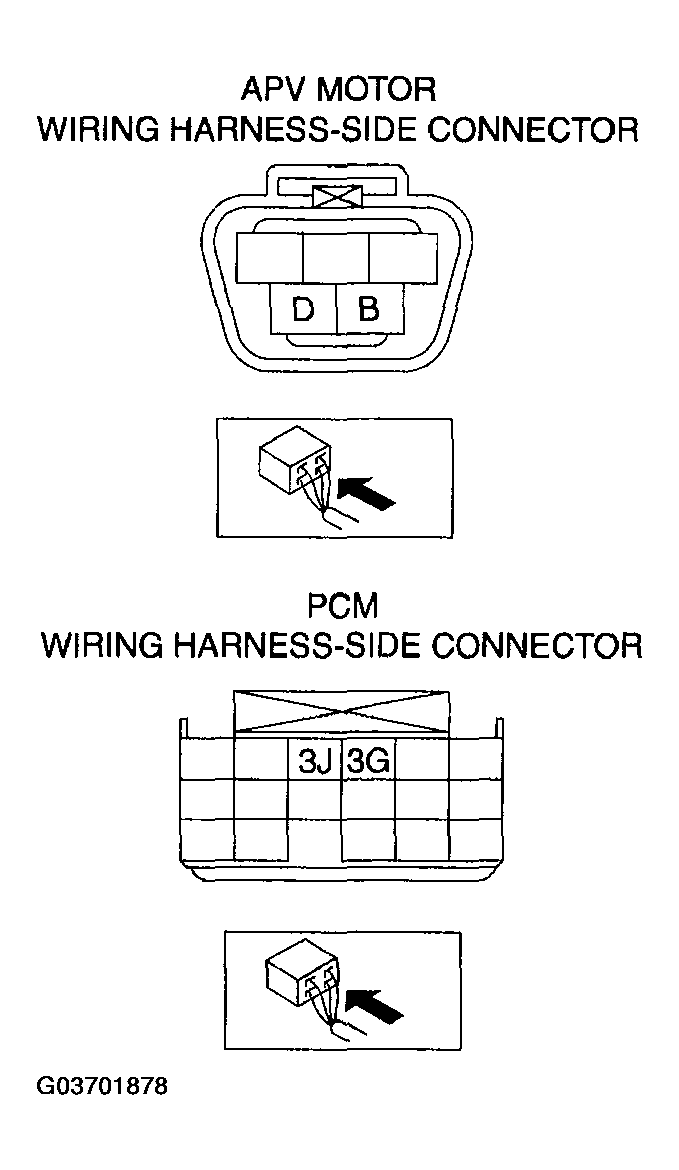

Fig 1: Identifying APV Motor And PCM Wiring Harness Connector
G03701878Courtesy of MAZDA MOTORS CORP.
  1. Inspect the following wiring harnesses for an open or short circuit. (Continuity check)
