Rear Oil Seal Replacement: Notes

WARNING: This page is about a different car, the 2005 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the transmission. (See TRANSMISSION REMOVAL/INSTALLATION .) (See AUTOMATIC TRANSMISSION REMOVAL/INSTALLATION .)
  2. Remove the flywheel. (MT) (See CLUTCH UNIT REMOVAL/INSTALLATION .)
  3. Remove the drive plate. (AT) (See DRIVE PLATE REMOVAL/INSTALLATION .)
  4. Remove in the order indicated in the table.
  5. Install in the reverse order of removal.

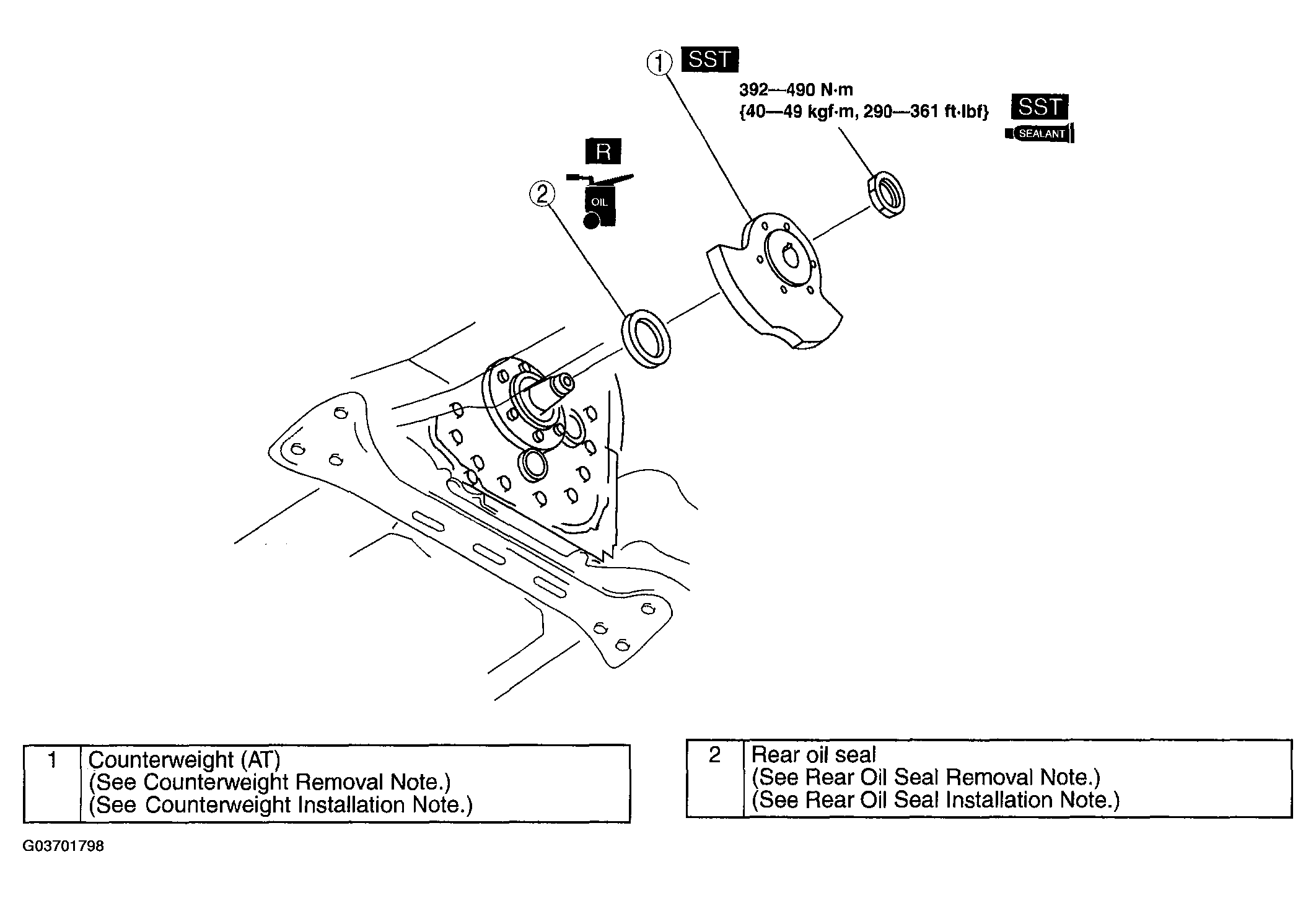

    Fig 1: Removing Rear Oil Seal With Torque Specification
    G03701798Courtesy of MAZDA MOTORS CORP.
