Power Plant Frame, Crossmember Bolt Removal/Installation Note
WARNING: This page is about a different car, the 2005 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

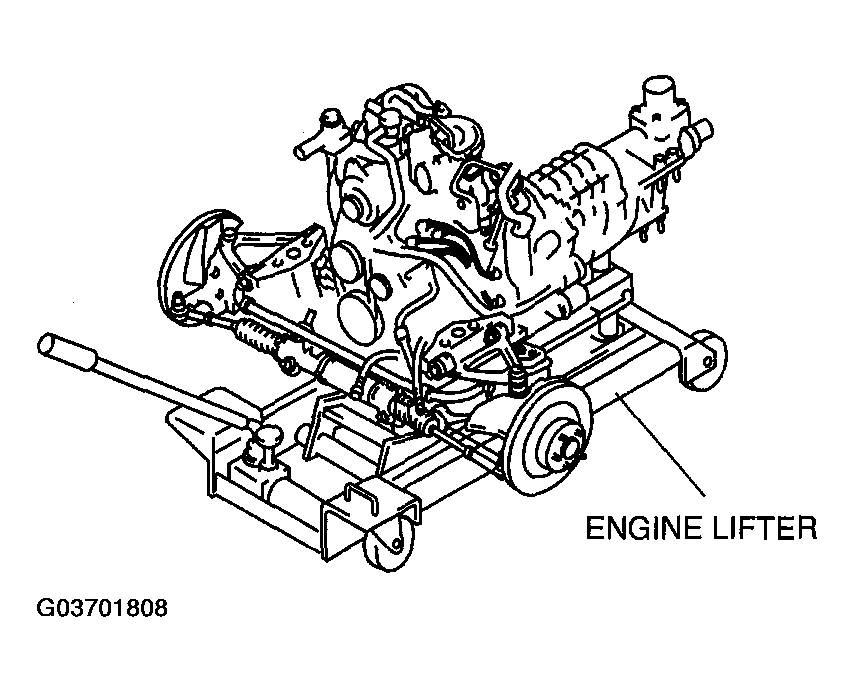

- Secure the engine, transmission, and crossmember component using an engine lifter.NOTE:
- When installing the power plant frame, tighten the tightening bolts and nuts temporarily at this time, and after installing all parts, adjust the transmission installation positions referring to 'Power Plant Frame Installation Note' and then tighten them completely. (See POWER PLANT FRAME REMOVAL NOTE )
