Quick Diagnostic Chart

WARNING: This page is about a different car, the 2005 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

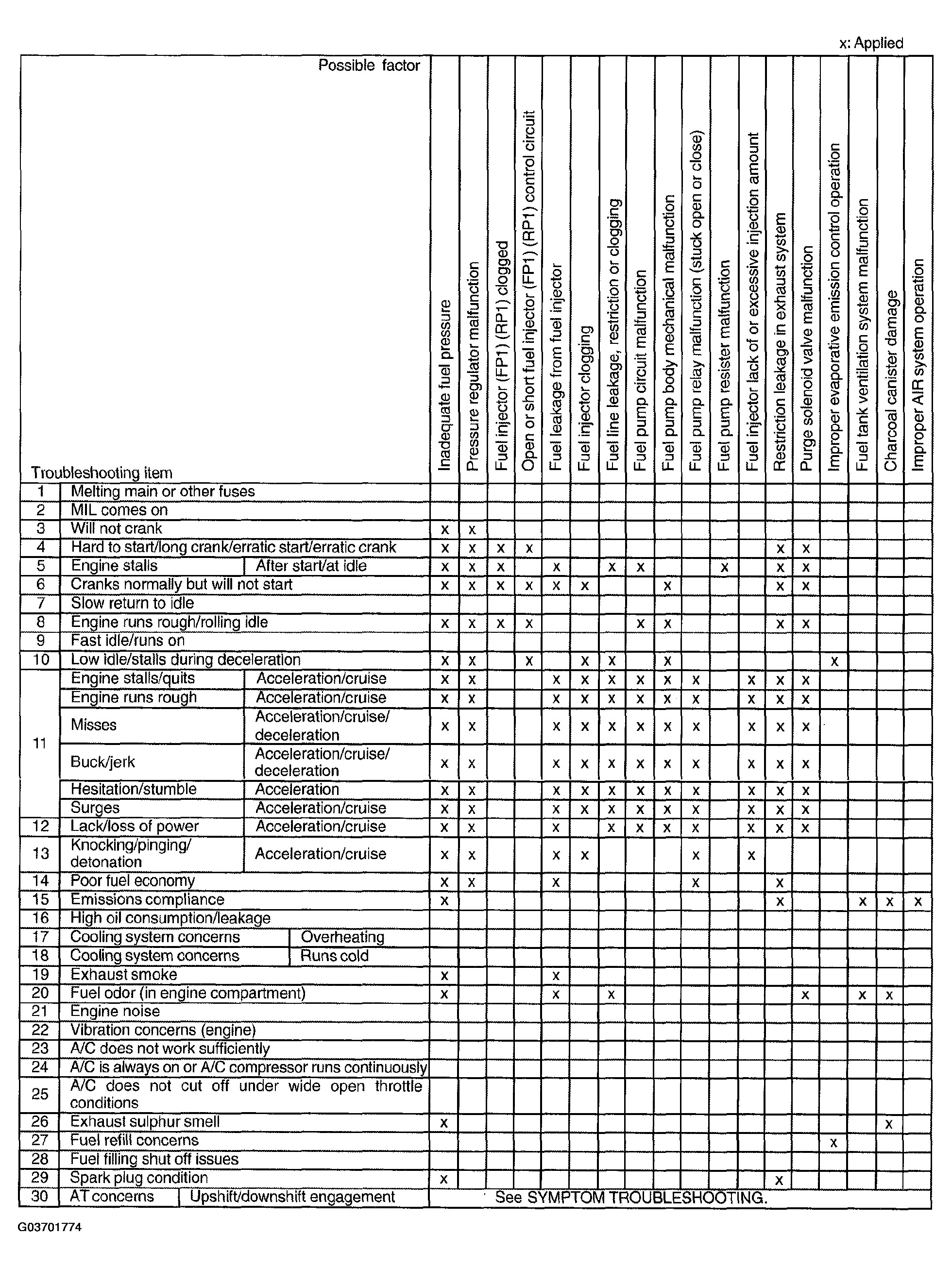

Fig 1: Quick Diagnostic Chart (1 Of 6)

Courtesy of MAZDA MOTORS CORP.

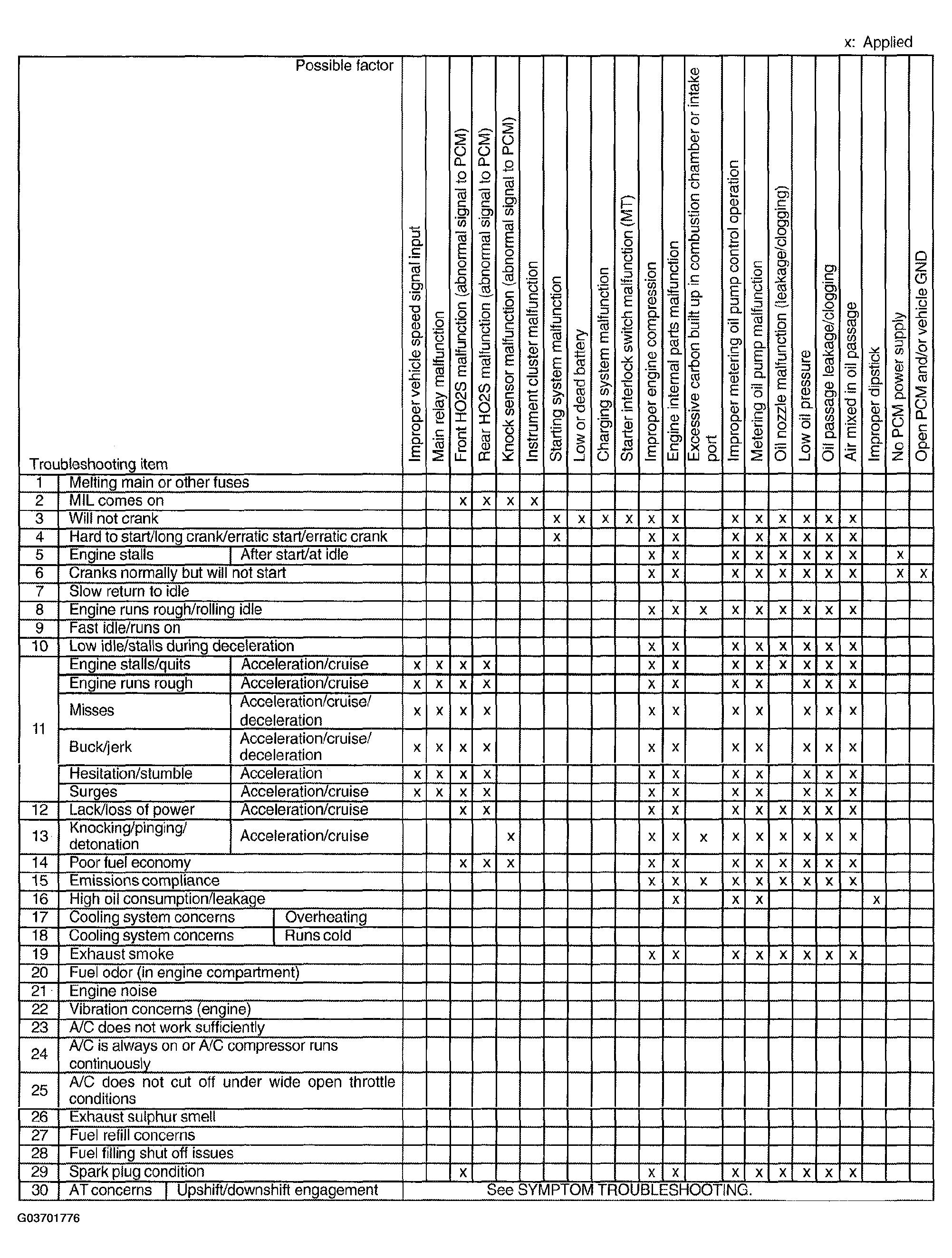

Fig 2: Quick Diagnostic Chart (2 Of 6)

Courtesy of MAZDA MOTORS CORP.

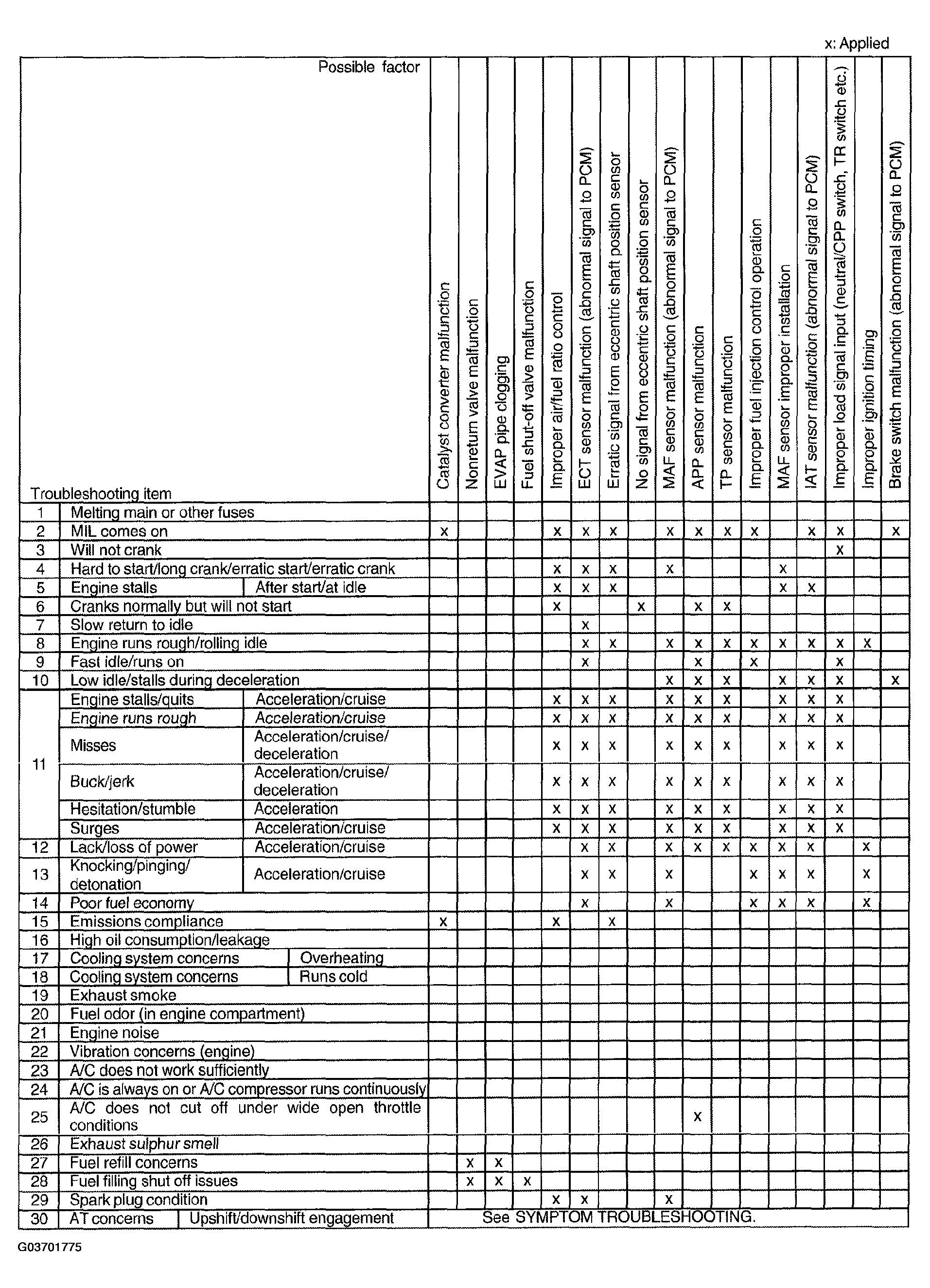

Fig 3: Quick Diagnostic Chart (3 Of 6)

Courtesy of MAZDA MOTORS CORP.

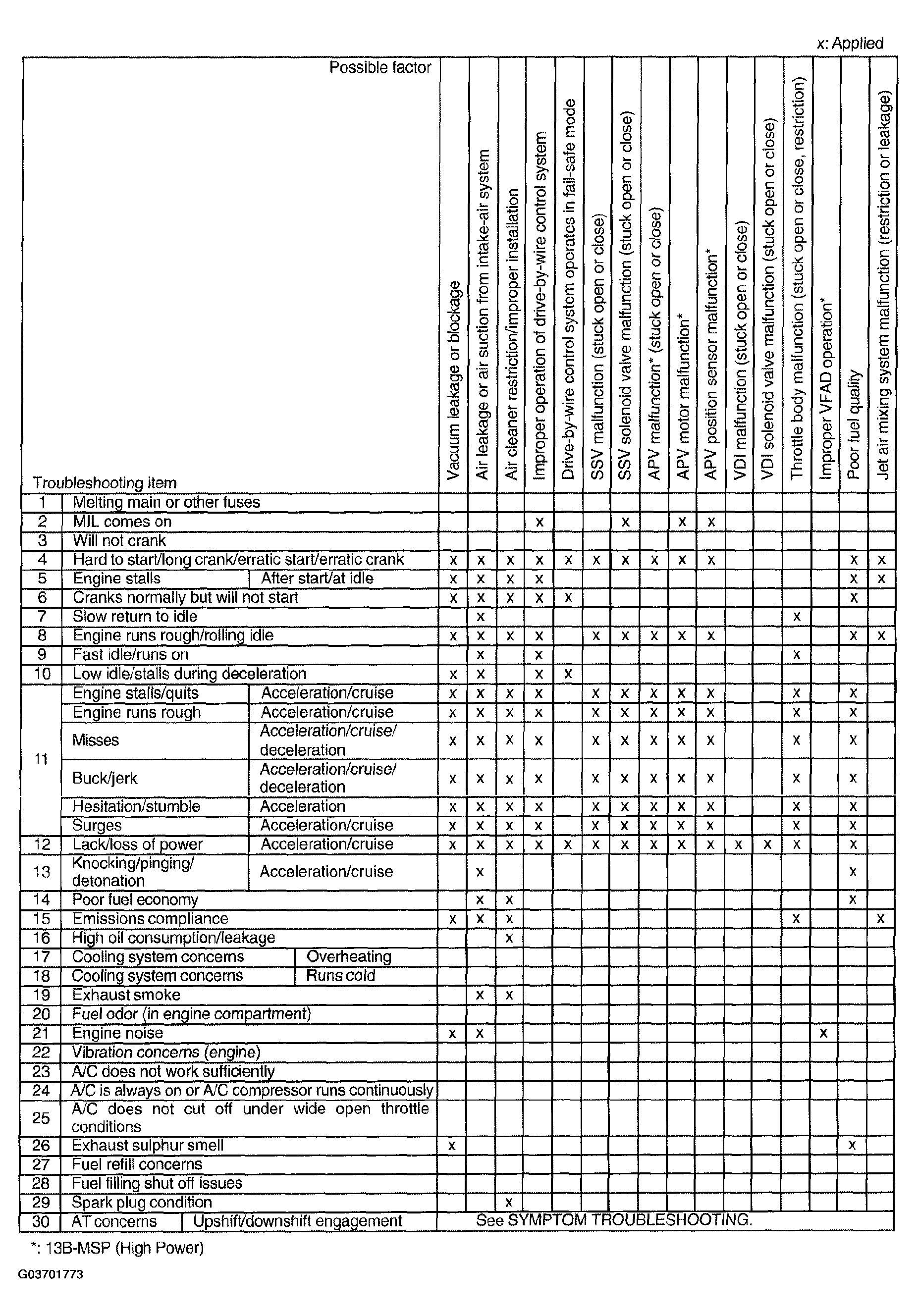

Fig 4: Quick Diagnostic Chart (4 Of 6)

Courtesy of MAZDA MOTORS CORP.

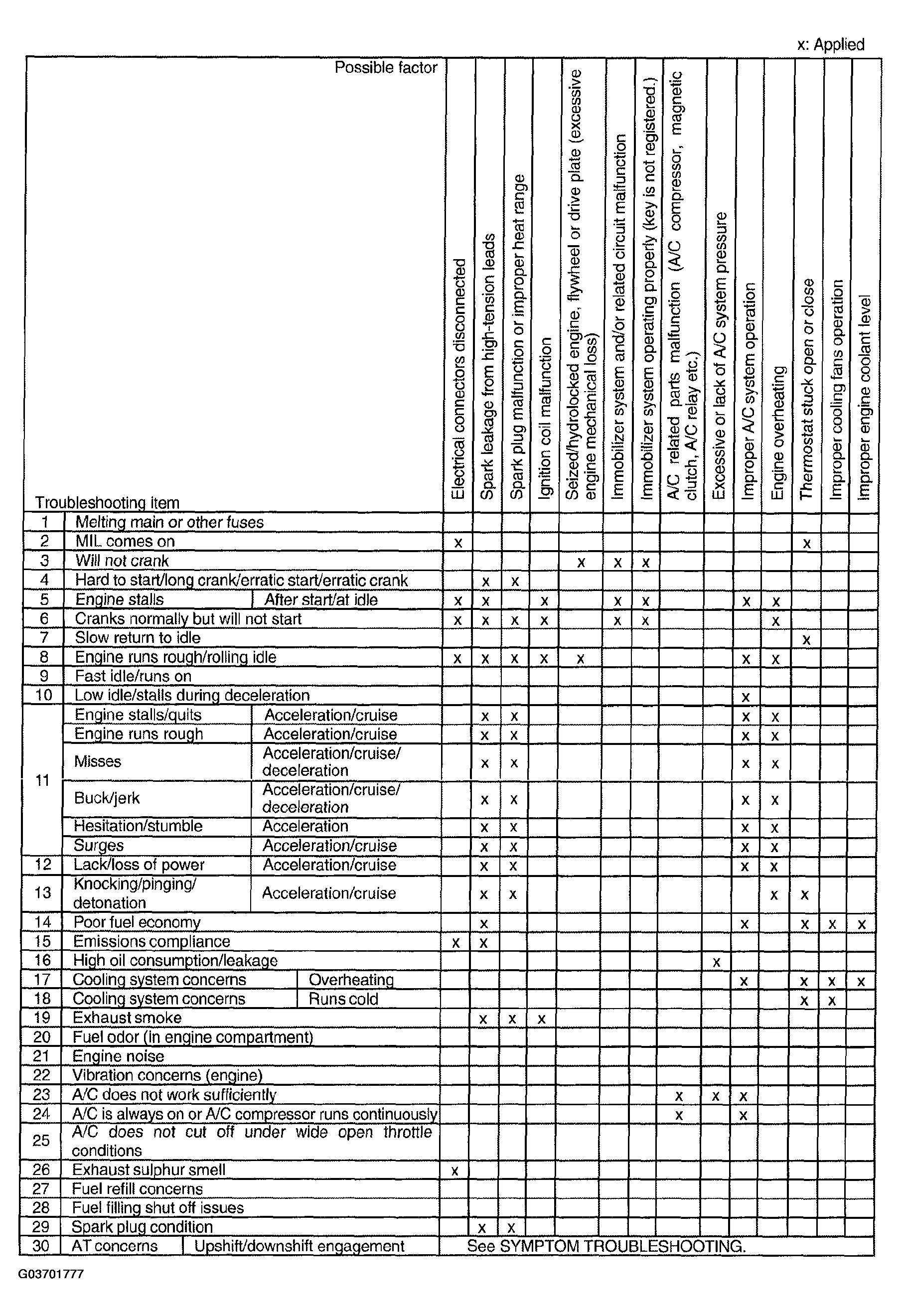

Fig 5: Quick Diagnostic Chart (5 Of 6)

Courtesy of MAZDA MOTORS CORP.

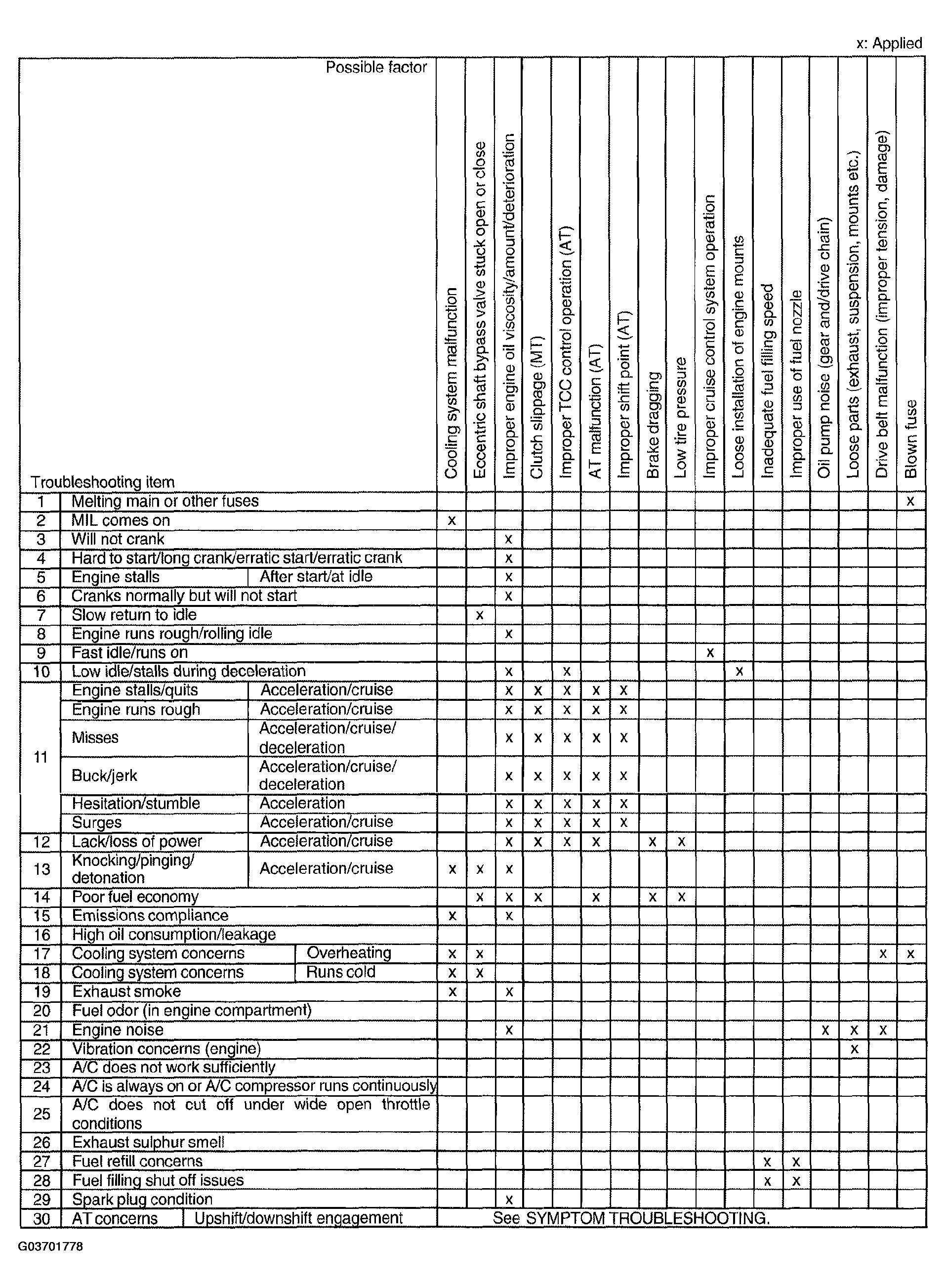

Fig 6: Quick Diagnostic Chart (6 Of 6)

Courtesy of MAZDA MOTORS CORP.
