DTC 08 - TNS Relay On/Off Signal

WARNING: This page is about a different car, the 2005 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

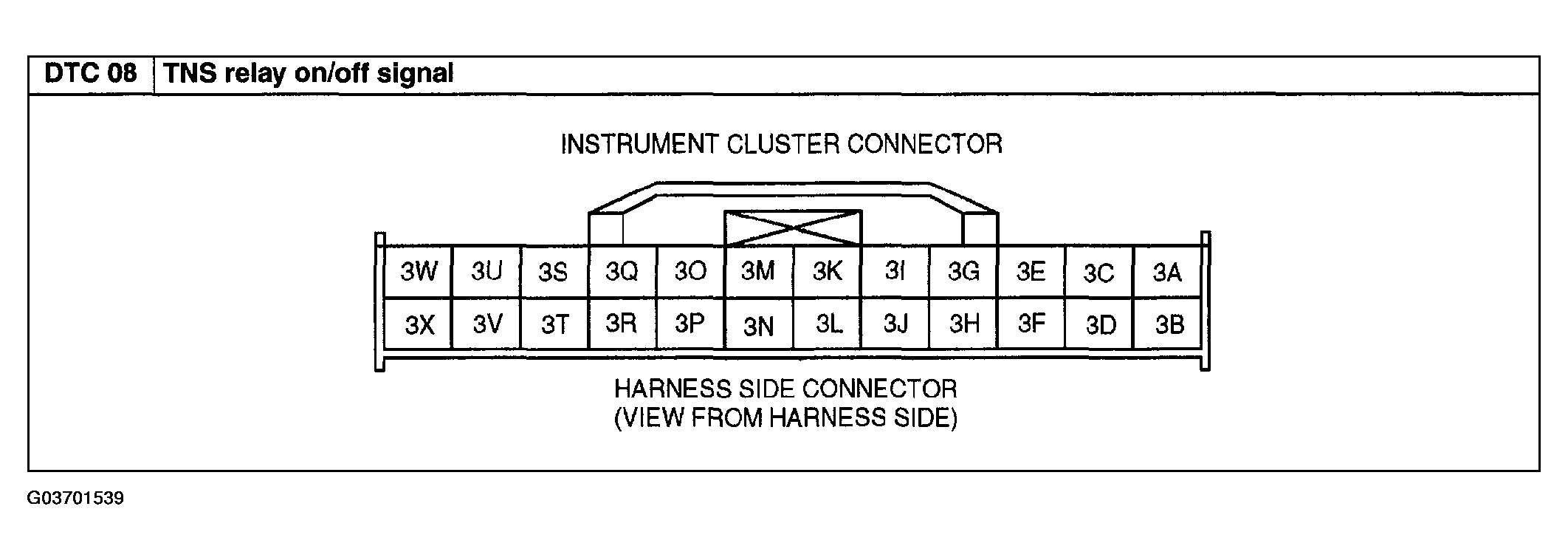

Fig 1: Identifying Instrument Cluster Connector Terminals (DTC 08)

Courtesy of MAZDA MOTORS CORP.

DIAGNOSTIC PROCEDURE - DTC 08

STEP	INSPECTION	INDICATION	ACTION
1	Turn headlight switch to TNS position. (TNS relay on.)	on	Go to next step.
1	Turn headlight switch to TNS position. (TNS relay on.)	off	Measure voltage at instrument cluster terminal 3E. Is voltage B+ ? If as specified, replace instrument cluster. If not as specified, inspect following parts. TNS relay Wiring harness (Battery - TNS relay - instrument cluster)
2	Turn headlight switch off. (TNS relay off.)	on	Measure voltage at instrument cluster terminal 3E. Is voltage 0 V ? If as specified, replace instrument cluster. If not as specified, inspect following parts. TNS relay Wiring harness (TNS relay - instrument cluster)
2	Turn headlight switch off. (TNS relay off.)	off	Input signal to instrument cluster is okay.
