Windshield Wiper and Washer Switch

WARNING: This page is about a different car, the 2005 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

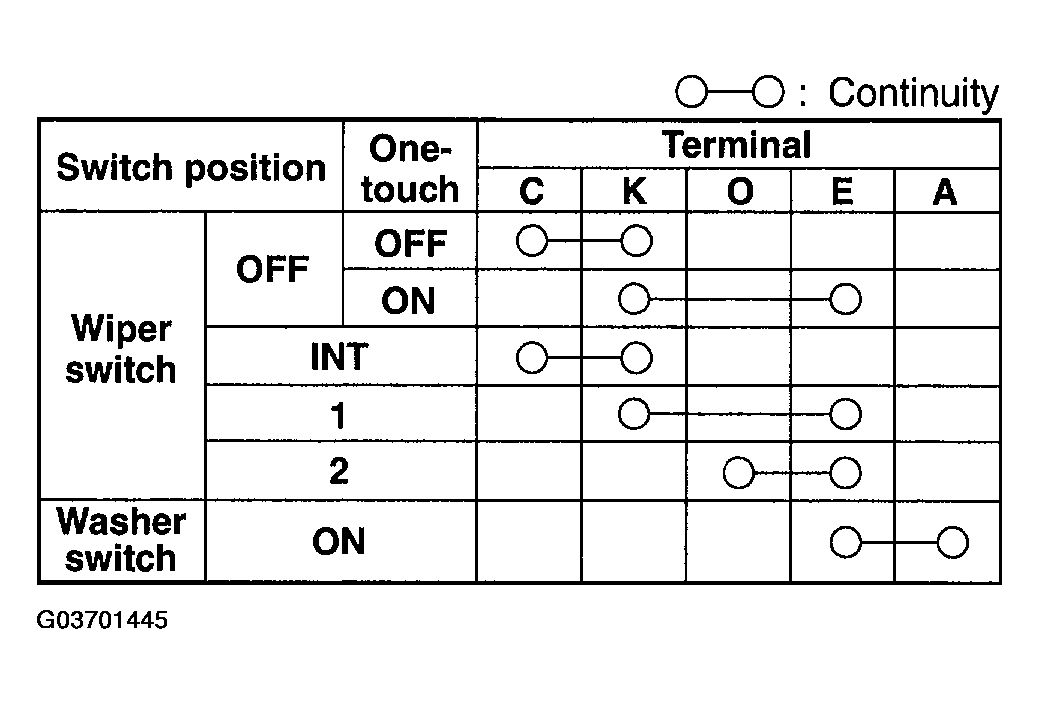

Fig 1: Windshield Wiper And Washer Switch Continuity Chart

Courtesy of MAZDA MOTORS CORP.

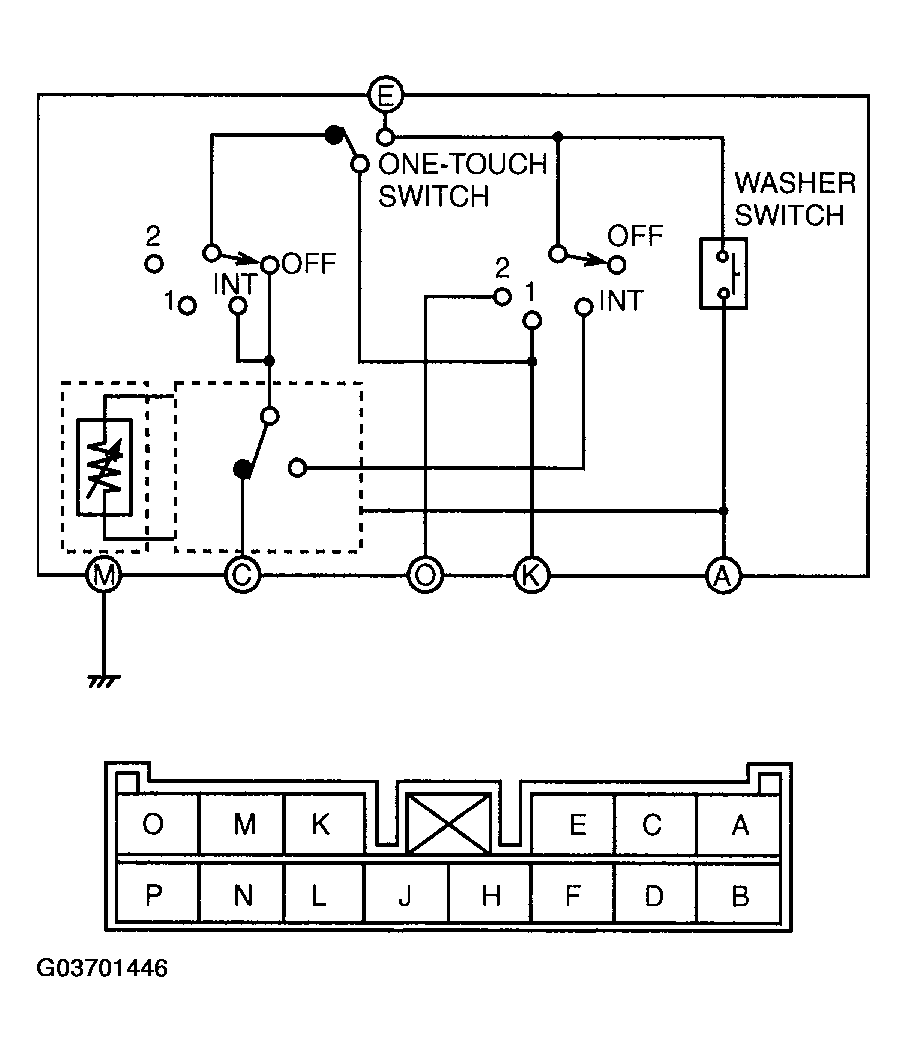

Fig 2: Inspecting Windshield Wiper And Washer Switch Continuity

Courtesy of MAZDA MOTORS CORP.
