Rear Washer Hose Removal/Installation

WARNING: This page is about a different car, the 2005 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the headliner. (See HEADLINER REMOVAL/INSTALLATION .)
  3. Remove the rear washer hose from the clips.

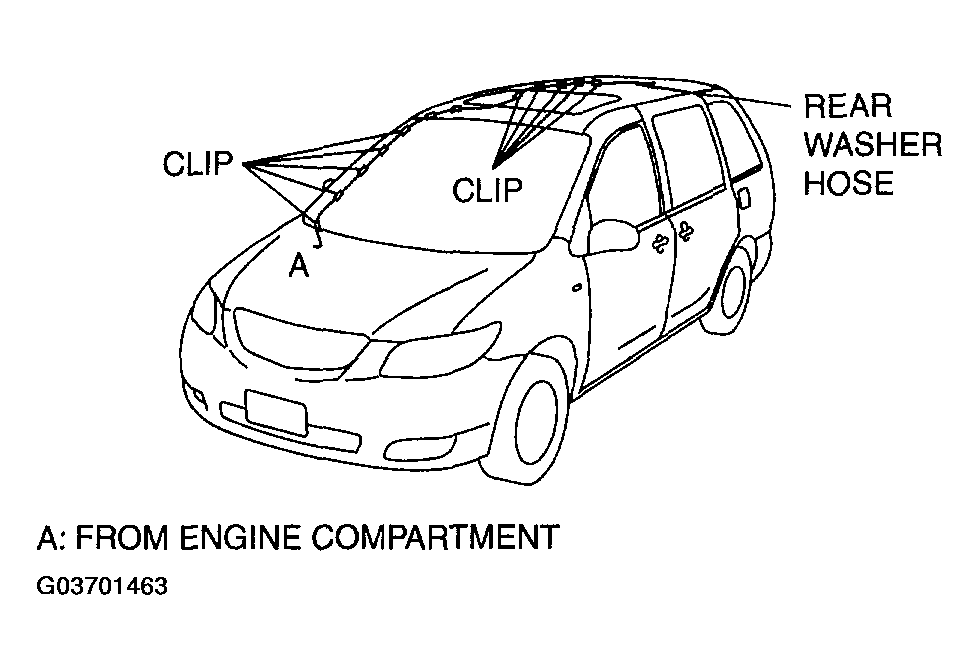

    Fig 1: Removing Rear Washer Hose From Clips (Engine Compartment)
    G03701463Courtesy of MAZDA MOTORS CORP.
  4. Remove the door lock control module. (See DOOR LOCK CONTROL MODULE REMOVAL/INSTALLATION .)
  5. Remove the bolts mounting the PCM. (See PCM REMOVAL/INSTALLATION .)
  6. Remove the bolts mounting the blower unit. (See BLOWER UNIT REMOVAL/INSTALLATION .)
  7. Move the blower unit to the cooling unit side.
  8. Remove the grommet of the rear washer hose.
  9. Partially peel off the right side mud guard and remove the rear washer hose from the clip.
    Fig 2: Removing Rear Washer Hose From Clip
    G03701464Courtesy of MAZDA MOTORS CORP.
  10. Remove the rear washer hose from the washer tank.
    Fig 3: Removing Rear Washer Hose From Washer Tank
    G03701465Courtesy of MAZDA MOTORS CORP.
  11. Install in the reverse order of removal.
