Front fog light (Sports)

WARNING: This page is about a different car, the 2005 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Adjust the tire air pressure to the specification.
  2. Position the unloaded vehicle on a flat, level surface.
  3. Seat one person in the driver's seat.
  4. Position the vehicles m {10 ft}  in front of a white screen.
  5. Remove the bolts, then pull back the mudguard.
  6. While adjusting one fog light, mask the other.
  7. Start the engine to charge the battery.
  8. Turn the front fog light on.
  9. Loosen the adjusting bolt.
    Fig 1: Identifying Front Fog Light Distance From White Screen (Sport)
    G03701363Courtesy of MAZDA MOTORS CORP.
  10. Adjust the adjusting bolt in the direction shown by the arrow to adjust the brightness border.

    Sports

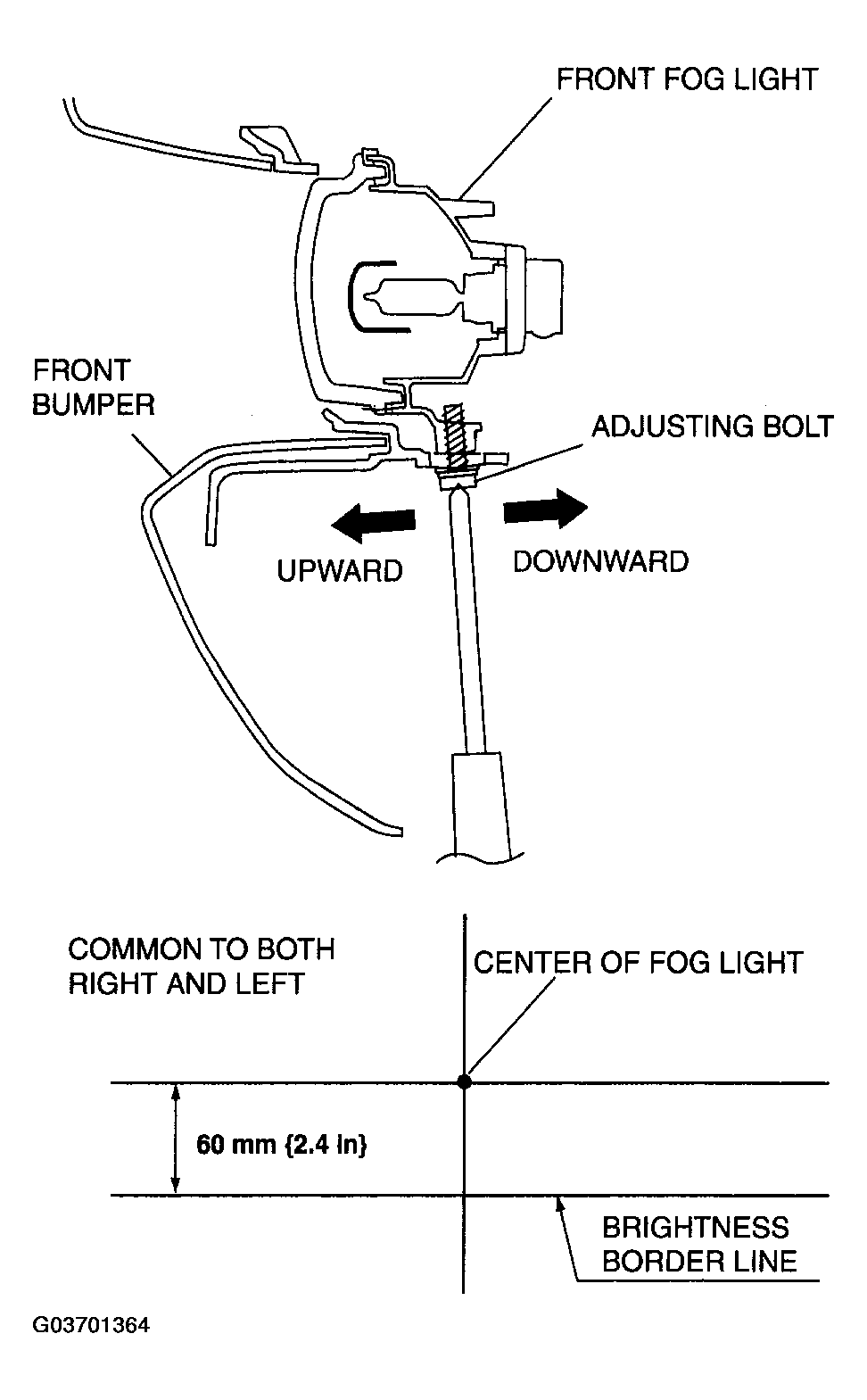

    Fig 2: Adjusting Front Fog Light (Sport)
    G03701364Courtesy of MAZDA MOTORS CORP.
  11. Tighten the adjusting bolt.
