Front Ashtray Illumination Bulb Removal/Installation

WARNING: This page is about a different car, the 2005 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the console. (See CONSOLE REMOVAL/INSTALLATION .)
  3. Remove in the order indicated in the table.

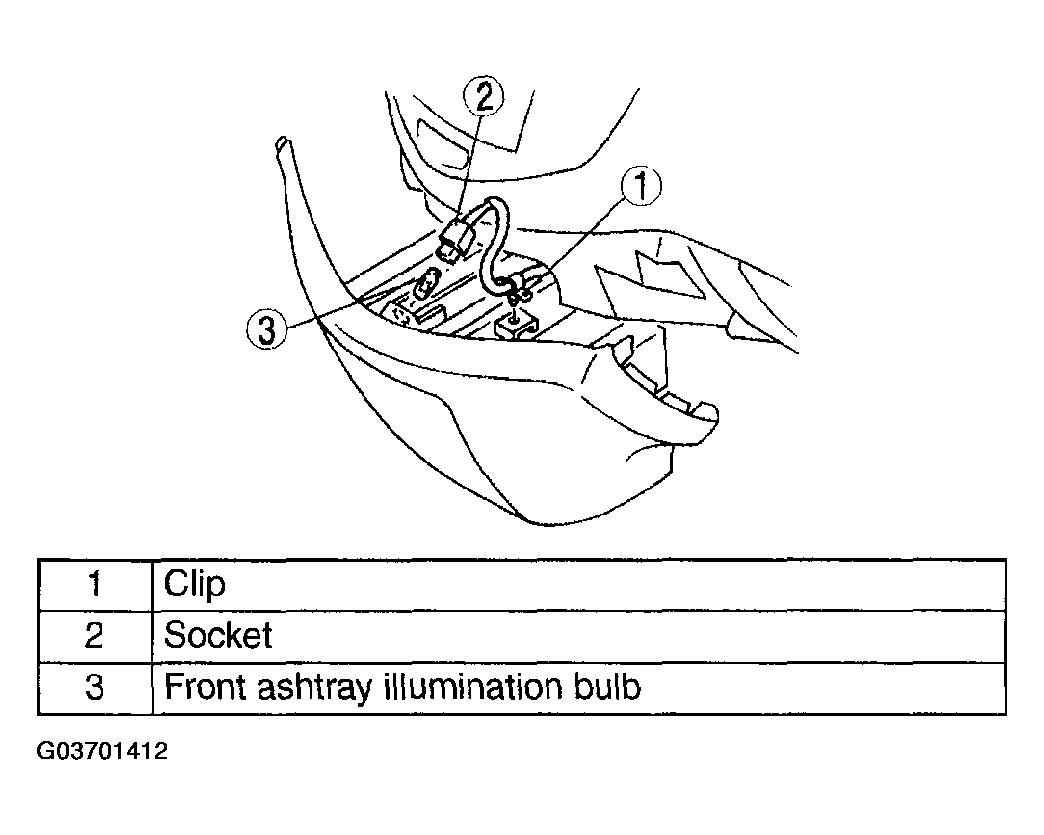

    Fig 1: Removing Front Ashtray Illumination Bulb
    G03701412Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
