Driver's and Center Side

WARNING: This page is about a different car, the 2005 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the meter hood. (See METER HOOD REMOVAL/INSTALLATION .)
  2. Remove the screws from behind the center panel, and remove the ventilator grille.
  3. Install in the reverse order of removal.

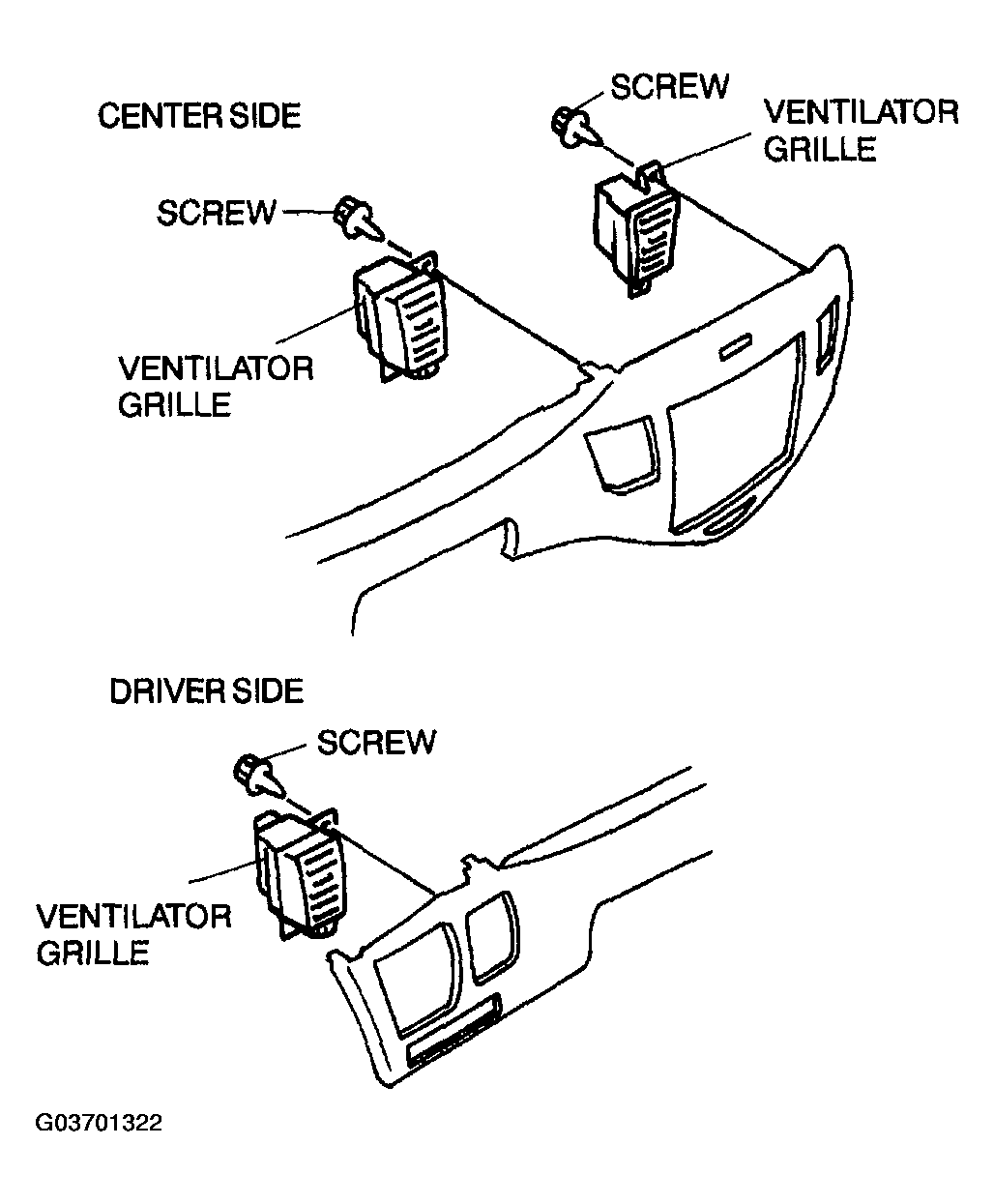

    Fig 1: Removing Ventilator Grille - Driver's And Center Side
    G03701322Courtesy of MAZDA MOTORS CORP.
