Rear Floor Covering Removal/Installation

WARNING: This page is about a different car, the 2005 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

Remove the rear side trim. (See REAR SIDE TRIM REMOVAL/INSTALLATION .)
Lift the third-row seat back and lower it into cargo well.
Remove the fastener A.

Fig 1: Removing Fastener
Courtesy of MAZDA MOTORS CORP.
Return the third-row seat to the original position.
Remove the lower anchor installation bolt of the center third-row seat belt.

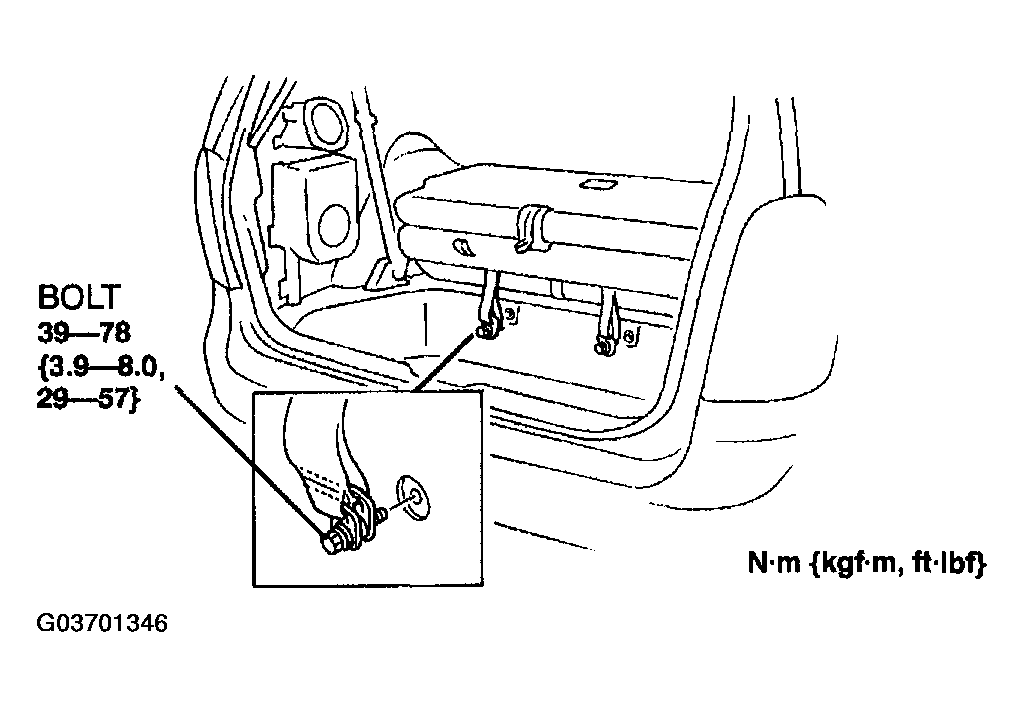

Fig 2: Removing Lower Anchor Installation Bolt Of Center Third-Row Seat Belt - With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
Remove the fasteners B.
Remove the ring of the cargo net, and remove the rear floor covering.

Fig 3: Removing Rear Floor Covering
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
