Glove Compartment Removal/Installation

WARNING: This page is about a different car, the 2005 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

Bend the stoppers inward, then remove.

Fig 1: Removing Stoppers
Courtesy of MAZDA MOTORS CORP.
Pull the glove compartment toward you while pushing it downward (1), then remove clip A.
Slide the glove compartment toward driver's side door (2).

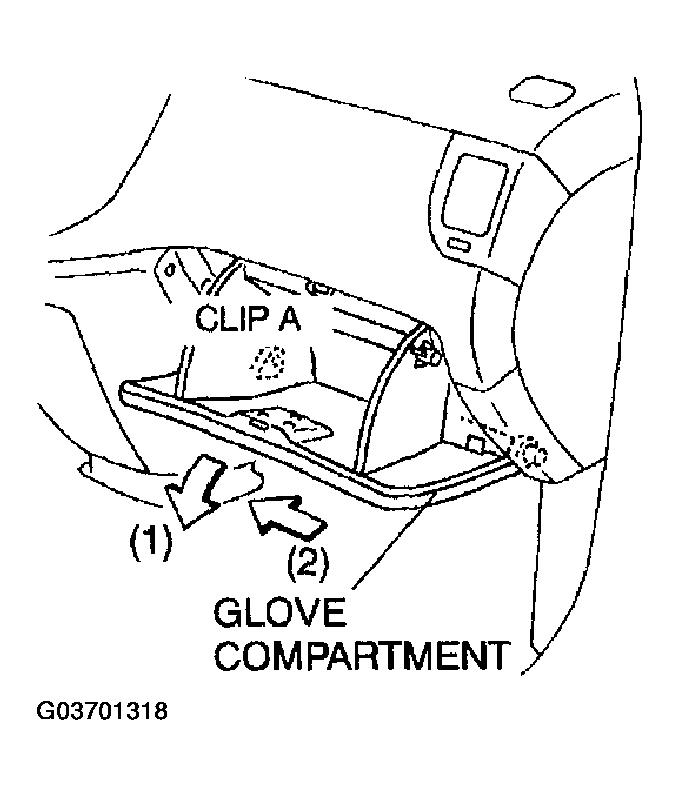

Fig 2: Removing Glove Compartment
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
