D-Pillar Trim Removal/Installation
WARNING: This page is about a different car, the 2005 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the rear side trim. (See REAR SIDE TRIM REMOVAL/INSTALLATION .)
- Turn the seaming welt over.
- Remove the upper anchor of the third-row seat belt. (See THIRD-ROW SEAT BELT REMOVAL/INSTALLATION .)

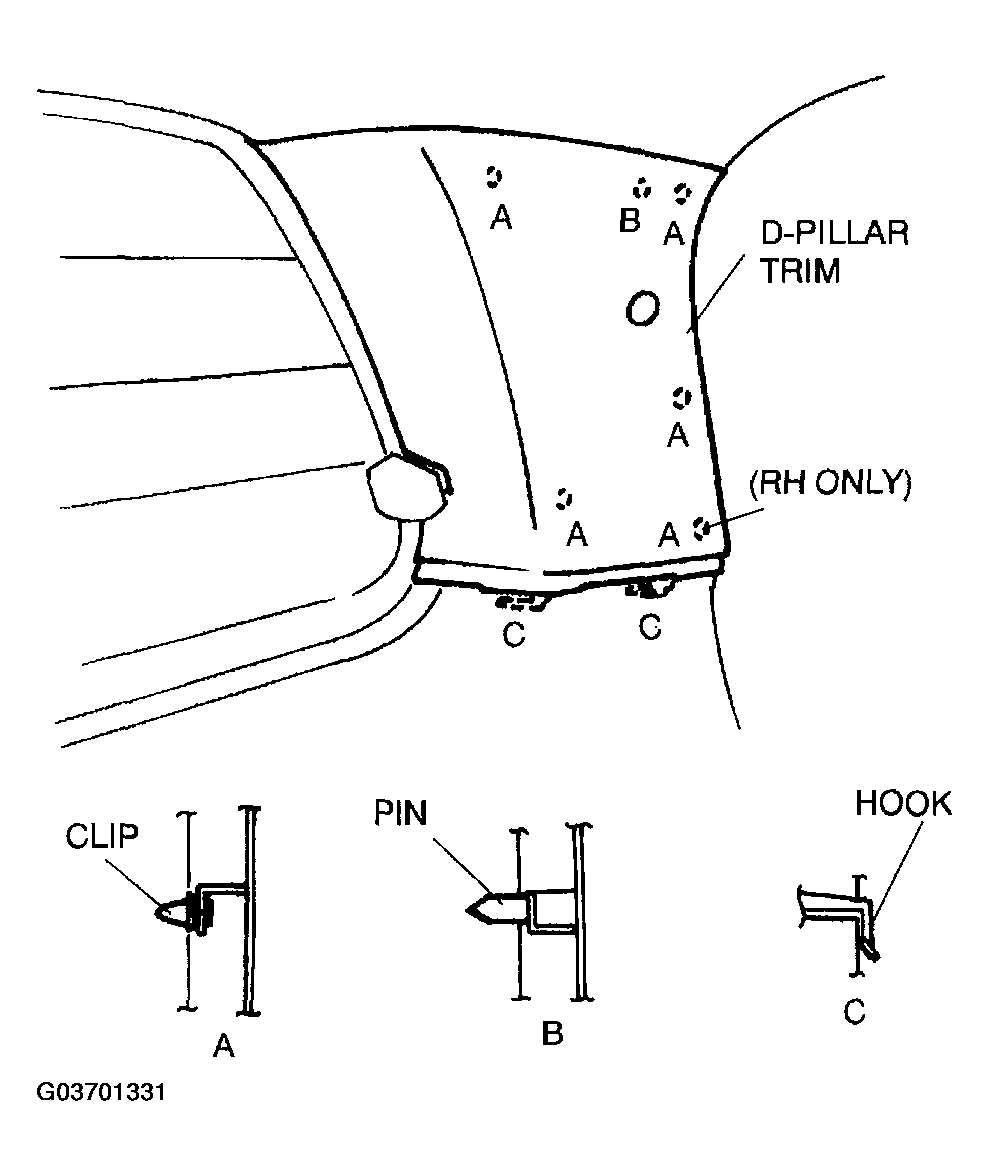

- Disengage clips A and pin B using a fastener remover.
- Pull the D-pillar trim upward, then disengage hooks C from the body, and remove the D-pillar trim.
- Install in the reverse order of removal.
