B-Pillar Lower Trim Removal/Installation

WARNING: This page is about a different car, the 2005 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
  • Handling the side air bag sensor improperly can accidentally deploy the side air bag module, which may seriously injure you. Read AIR BAG SYSTEM SERVICE WARNINGS before working around the B-pillar areas. (See SERVICE WARNINGS , SERVICE CAUTIONS .)
NOTE:
  • The side air bag sensor is located in the B-pillar.
  1. Remove the assist handle. (See ASSIST HANDLE REMOVAL/INSTALLATION .)
  2. Remove the front scuff plate.
  3. Remove the rear scuff plate.
  4. Remove the power sliding door rear switch, (with power sliding door system)
  5. Turn the seaming welt over.
  6. Remove the fastener.
  7. Disengage clips A using a fastener remover, and remove the B-pillar lower trim.

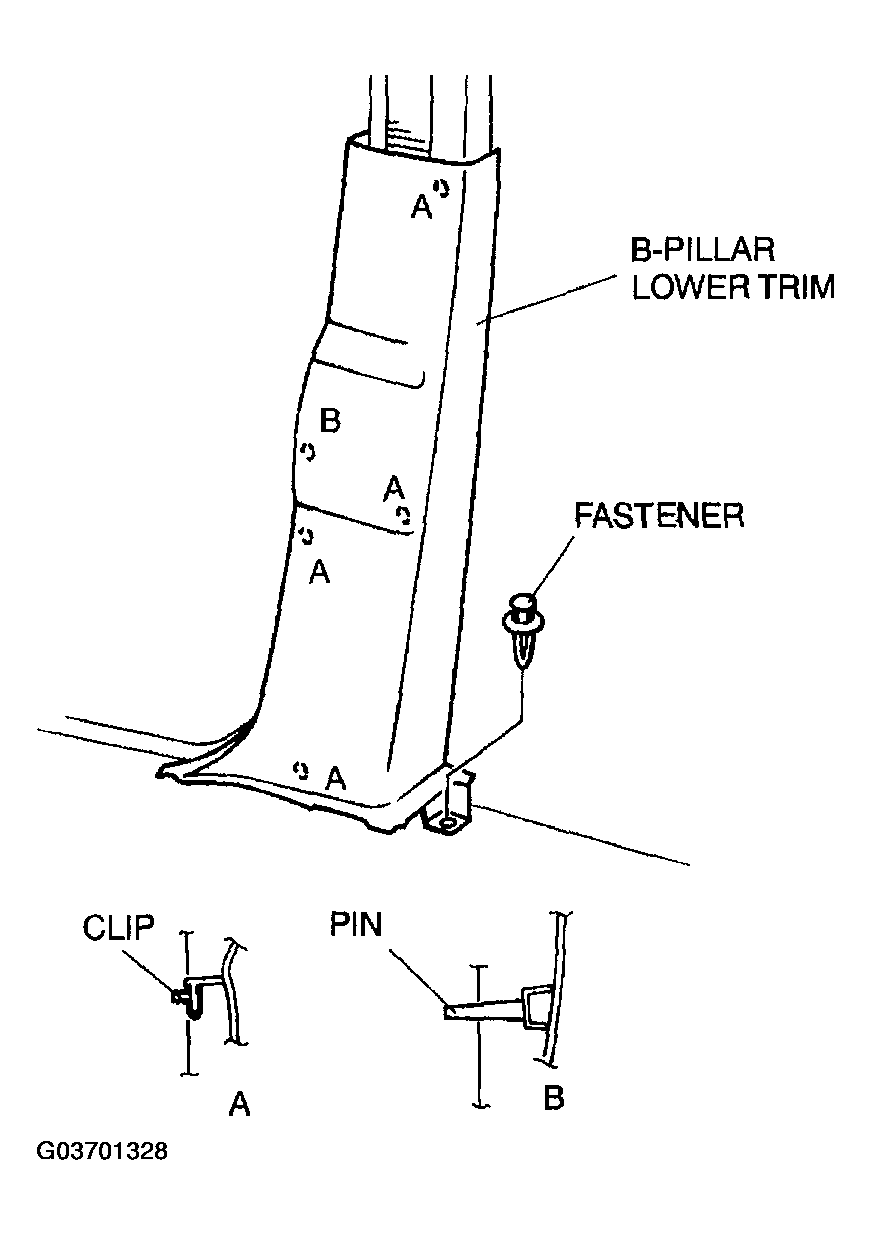

    Fig 1: Removing B-Pillar Lower Trim
    G03701328Courtesy of MAZDA MOTORS CORP.
  8. Install in the reverse order of removal.
