Second-Row Seat Removal

WARNING: This page is about a different car, the 2005 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Place the buckle in the pocket in the cushion.
  2. Slide the seat to the rear most position.
  3. Pull the recliner lever and lower the seat back forward.
  4. Lift and hold the seat-anchor bar and lift the entire seat up and forward.
    Fig 1: Lifting Seat-Anchor Bar
    G03701182Courtesy of MAZDA MOTORS CORP.
  5. Remove the second-row seat.

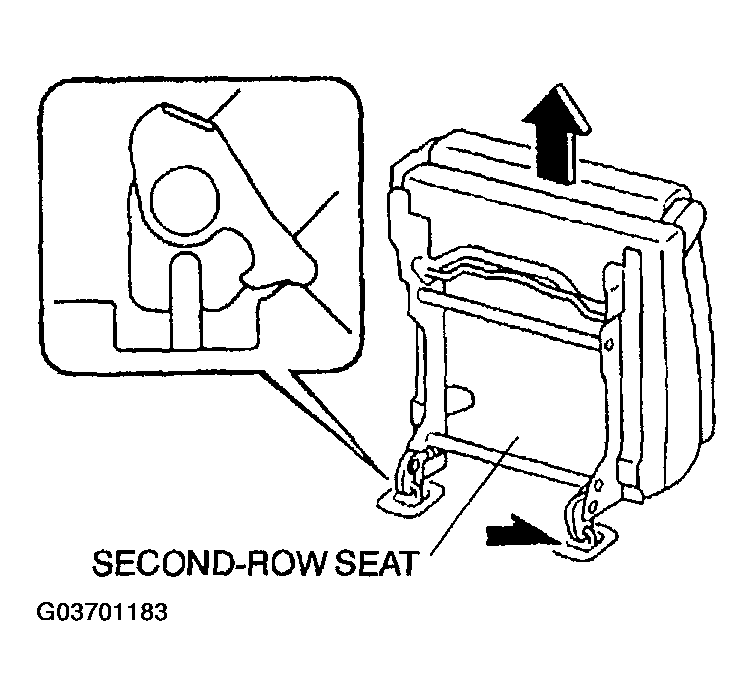

    Fig 2: Removing Second-Row Seat
    G03701183Courtesy of MAZDA MOTORS CORP.
