Driver's Seat (Normal Seat)

WARNING: This page is about a different car, the 2005 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

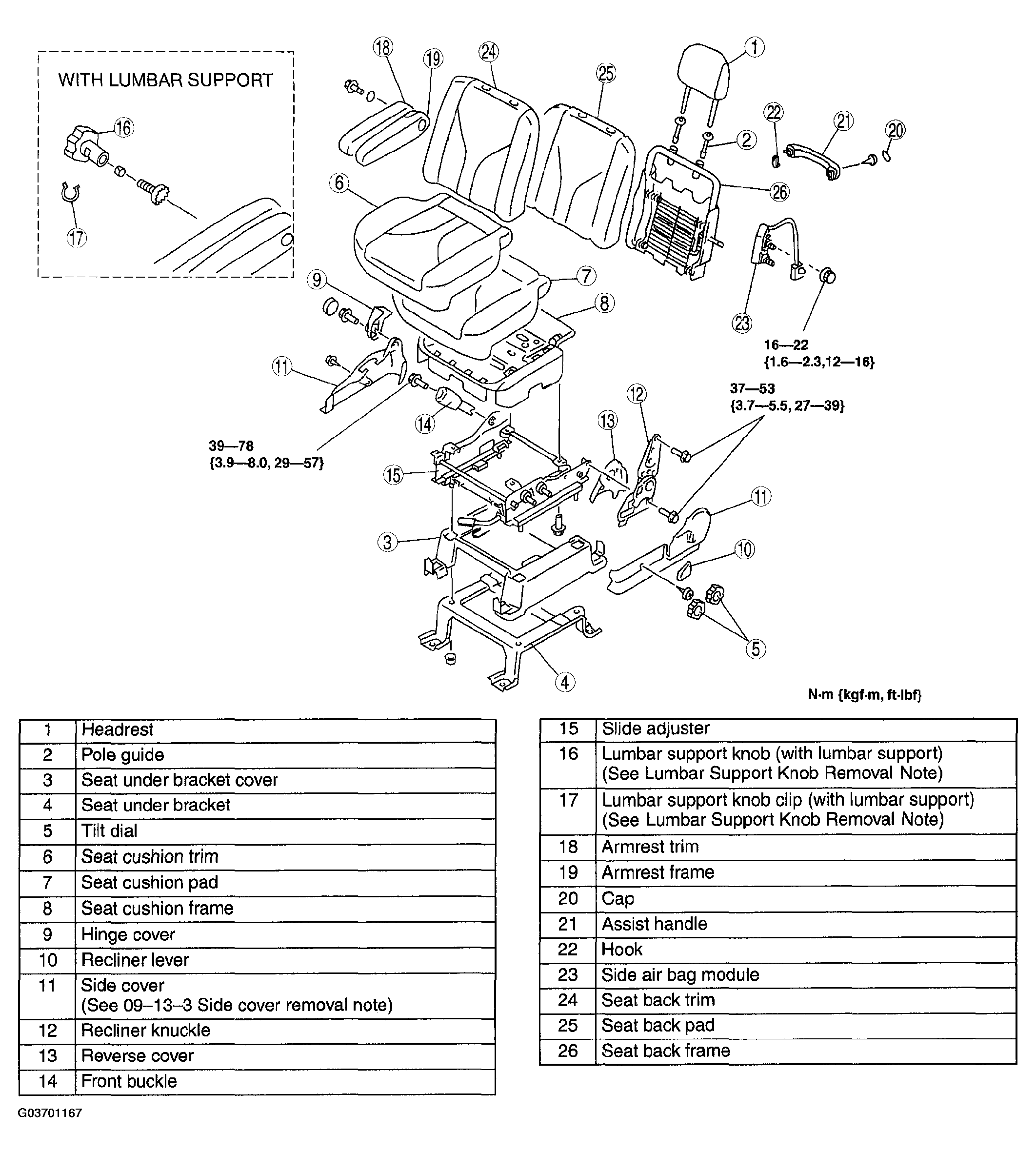

Fig 1: Disassembling Driver's Seat (Normal) - With Torque Specifications
G03701167Courtesy of MAZDA MOTORS CORP.
