Rear Bumper Removal Note

WARNING: This page is about a different car, the 2005 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

Pull the rear bumper ends (wheel arch) outward to disengage with the bumper slider.
CAUTION:
- If only one slide of the rear bumper is disengaged from the bumper slider and the bumper falls, it could be damaged. When disengaging the rear bumper from the slider, secure the bumper so that it does not fall.

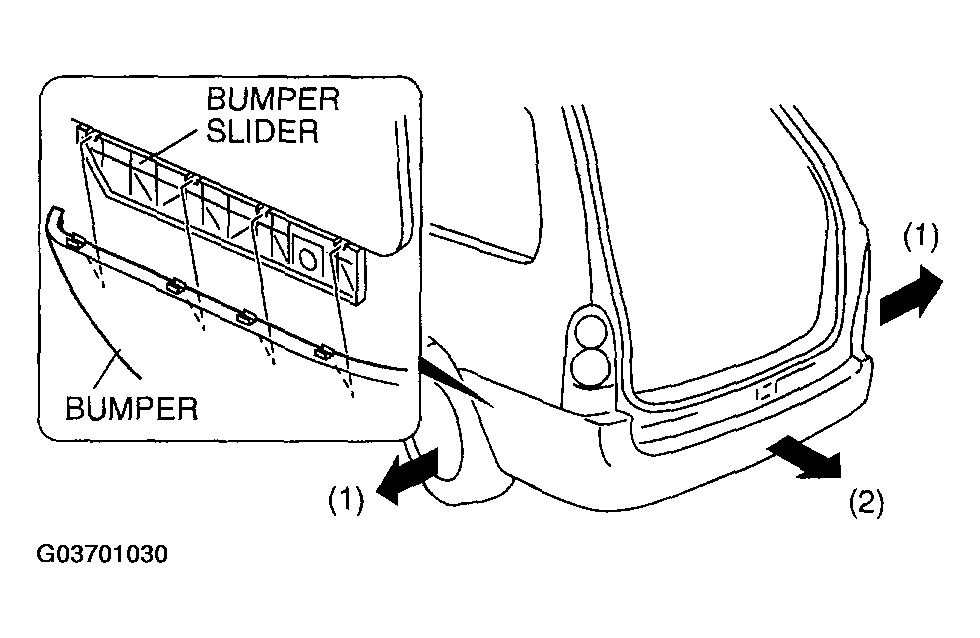

Fig 1: Pulling Rear Bumper Ends Outward
Courtesy of MAZDA MOTORS CORP.
