Hood Removal/Installation

WARNING: This page is about a different car, the 2005 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

Removing the hood without supporting it can be dangerous. The hood may fall and injure you. Always perform the following procedure together with at least another person.

Disconnect the windshield washer hose.
To remove the hood hinge, remove the front fender panel. (See FRONT FENDER PANEL REMOVAL/INSTALLATION .)
Remove in the order indicated in the table.

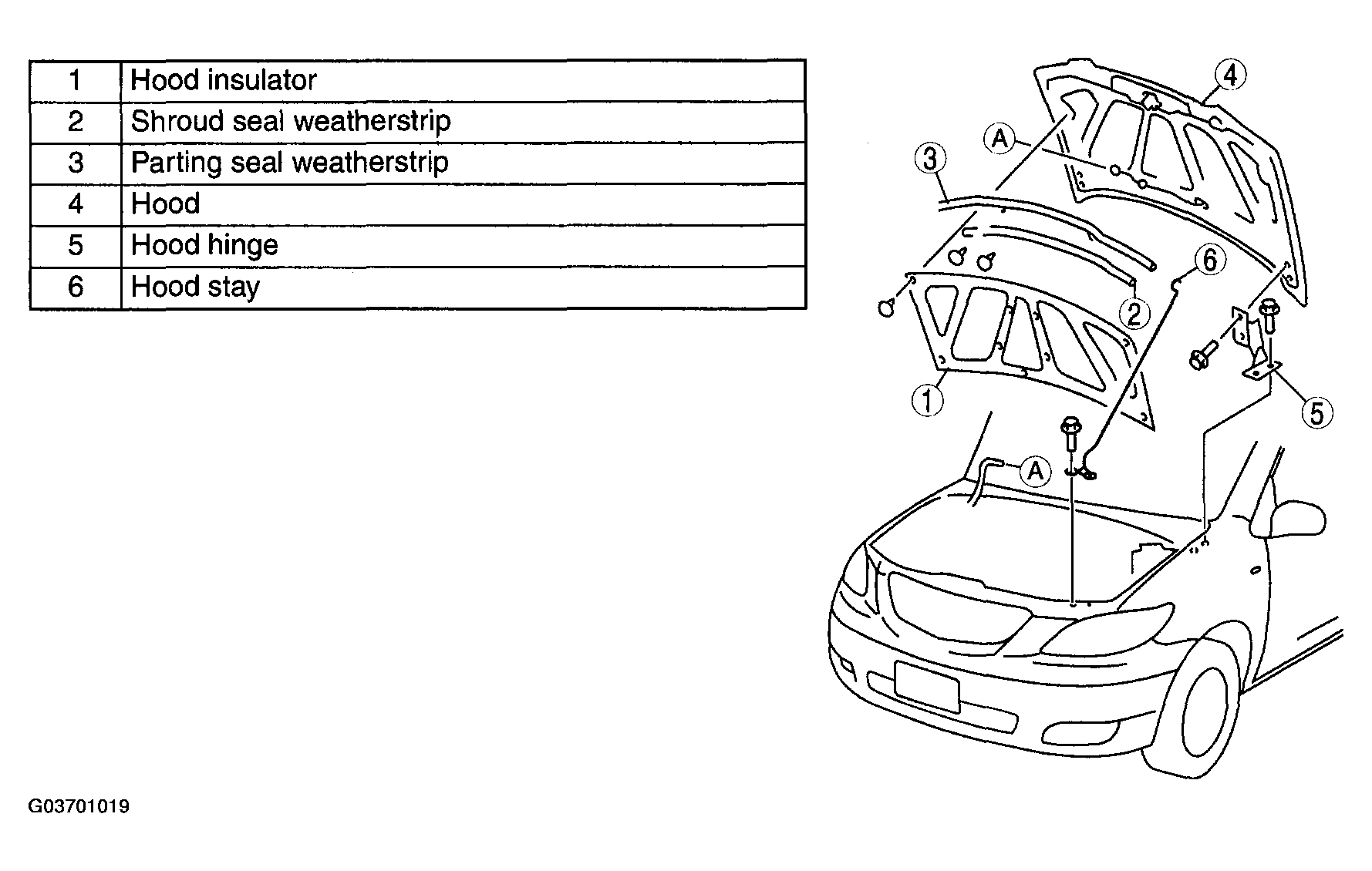

Fig 1: Removing Hood And Components
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
Adjust the hood. (See HOOD ADJUSTMENT .)
