Front Bumper Reinforcement Removal/Installation

WARNING: This page is about a different car, the 2005 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION .)
  3. Remove the headlight. (See FRONT COMBINATION LIGHT REMOVAL/INSTALLATION .)
  4. Support the radiator and the condenser using the wire.
  5. Remove the bolt.
  6. Remove the bumper reinforcement.
  7. Install in the reverse order of removal.

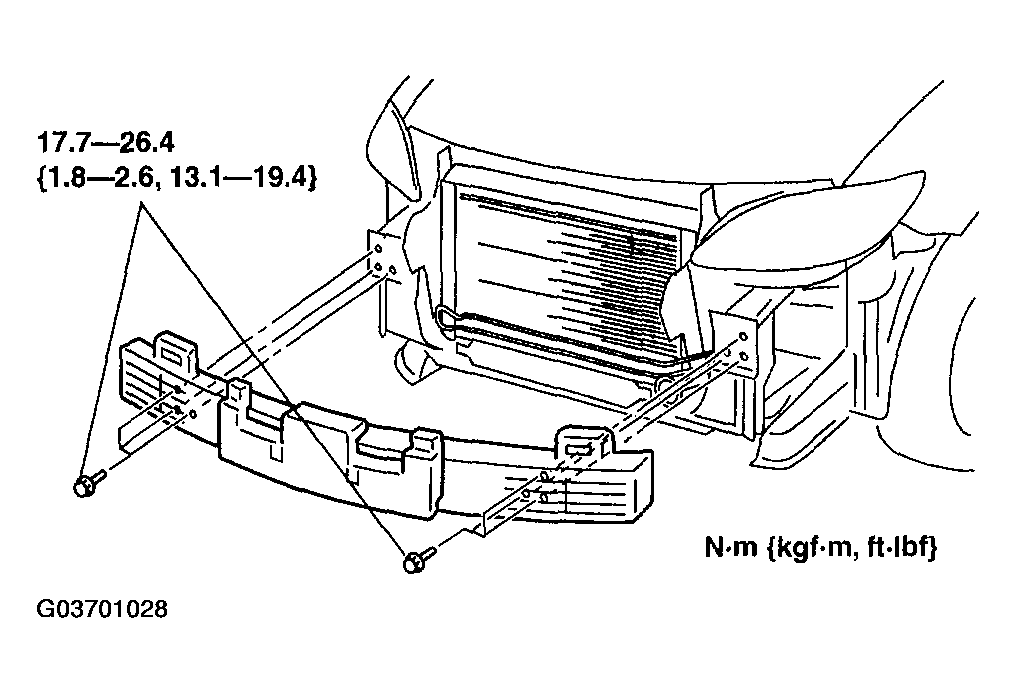

    Fig 1: Removing Front Bumper Reinforcement - With Torque Specifications
    G03701028Courtesy of MAZDA MOTORS CORP.
