Connector Removal Note

WARNING: This page is about a different car, the 2005 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

Slide the connector cover toward the harness and then disconnect the connector from the side air bag sensor.

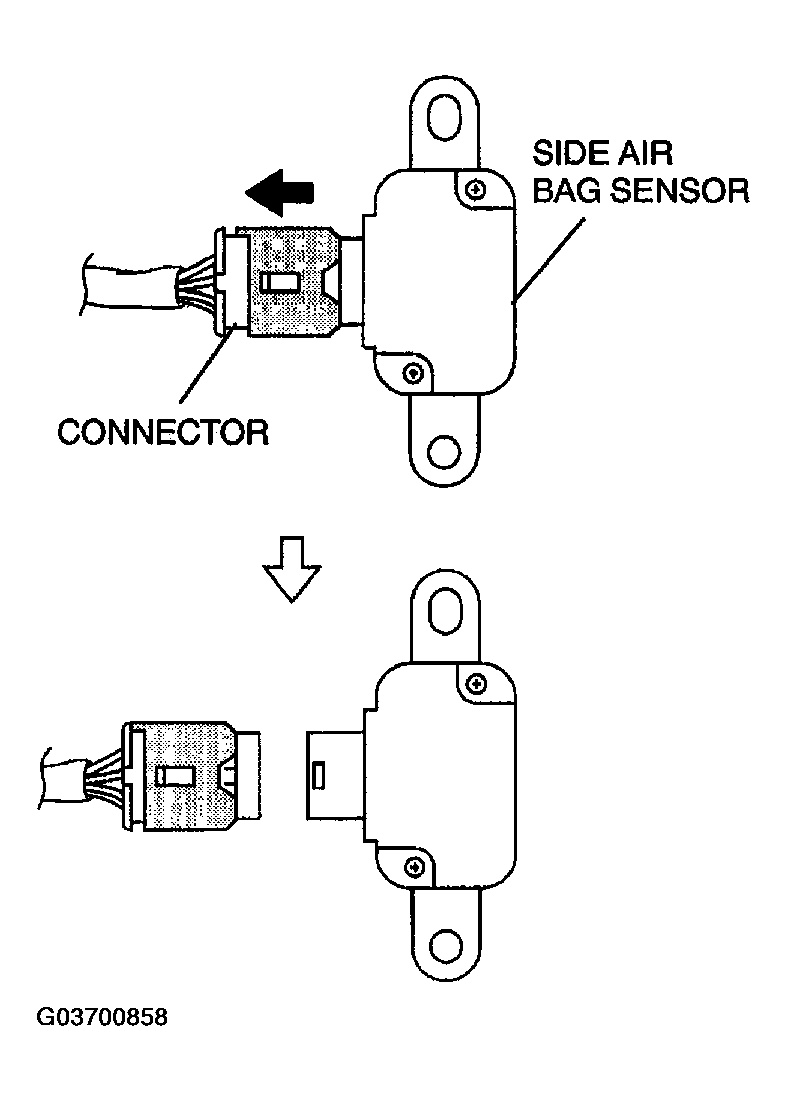

Fig 1: Disconnecting Connector From Side Air Bag Sensor
Courtesy of MAZDA MOTORS CORP.
