Pre-tensioner seat belt

WARNING: This page is about a different car, the 2005 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the pre-tensioner seatbelt. (See FRONT SEAT BELT REMOVAL/INSTALLATION (STANDARD DEPLOYMENT CONTROL SYSTEM) , FRONT SEAT BELT REMOVAL/INSTALLATION (TWO-STEP DEPLOYMENT CONTROL SYSTEM) .)
    WARNING:
    • If the pre-tensioner seat belt is not properly installed to the tire, serious injury may occur when the pre-tensioner part is operated (deployed). When installing the pre-tensioner seat belt to the tire, make sure the pre-tensioner part is inside the tire.
  2. Connect the SST  (Adapter harness) to the pre-tensioner seat belt as shown in the figure.
    Fig 1: Connecting SST (Adapter Harness) To Pre-Tensioner Seat Belt
    G03700945Courtesy of MAZDA MOTORS CORP.
  3. Put the pre-tensioner seat belt inside the tire and secure it to the tire by wrapping a wire (cross section 1.25 mm 2  {0.002 in 2  } or more)  through the tire and the bolt installation holes at least 4 times.
    Fig 2: Securing Pre-Tensioner Seat Belt To Tire
    G03700946Courtesy of MAZDA MOTORS CORP.
  4. Stack the tire with the pre-tensioner seat belt on top of two tires without wheels. Stack a tire without a wheel on top of the tire with the pre-tensioner seat belt, and then stack another tire with a wheel on the very top.
    Fig 3: Stacking Tires (For Pre-Tensioner Seat Belt Deployment)
    G03700947Courtesy of MAZDA MOTORS CORP.
  5. Secure the tires with wire.

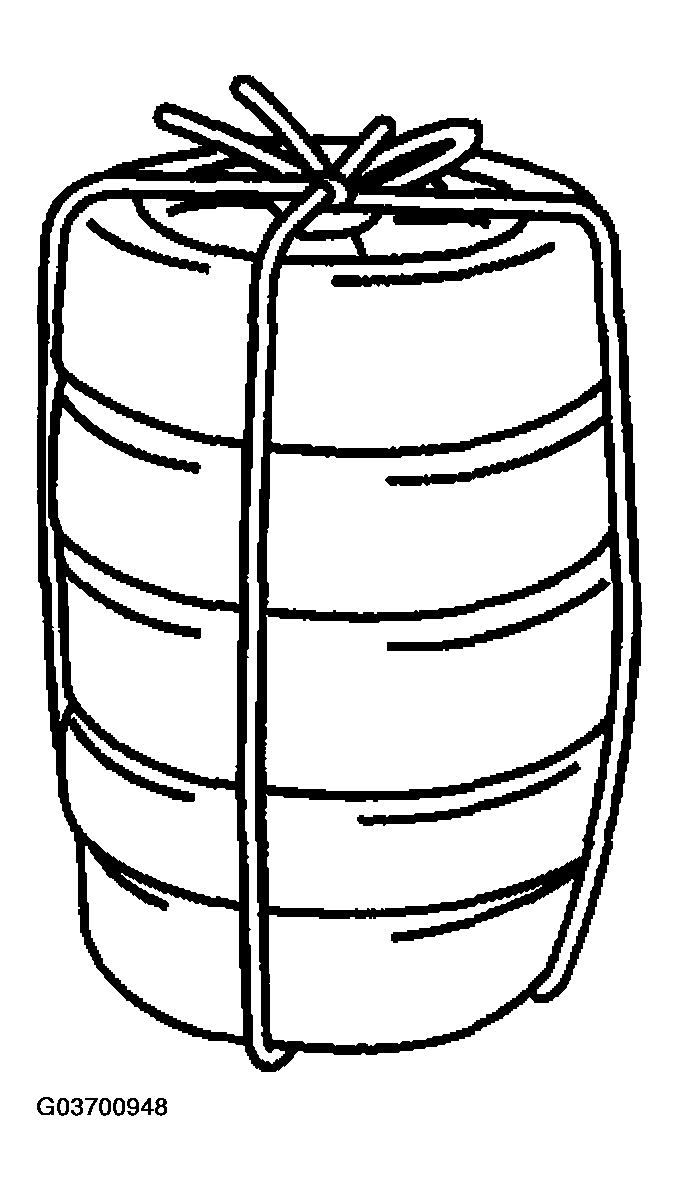

    Fig 4: Tying All Tires Together With Wire
    G03700948Courtesy of MAZDA MOTORS CORP.
  6. Connect the SST  (Deployment tool) to the SST  (Adapter harness).
    Fig 5: Connecting SST (Deployment Tool) To SST (Adapter Harness)
    G03700949Courtesy of MAZDA MOTORS CORP.
  7. Connect the SST  (Deployment tool) to the battery. Connect the power supply red clip to the positive battery terminal, and the black clip to the negative battery terminal.
  8. Verify that the red lamp on the SST  (Deployment tool) is illuminated.
  9. Verify that all persons are standing at least 6 m {20 ft}  away from the vehicle.
  10. Press the activation switch on the SST  (Deployment tool) to operate (deploy) the pre-tensioner seat belt.
    Fig 6: Identifying Activation Switch On SST (Deployment Tool)
    G03700950Courtesy of MAZDA MOTORS CORP.
