Driver-side air bag module

WARNING: This page is about a different car, the 2005 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
  • The driver-side air bag module is a dual inflator type. If one inflator is forced to operate (deploy), the other may operate (deploy) accidentally. To prevent injury while disposing of the air bag module, make sure to operate (deploy) both driver-side air bag module inflators simultaneously, following the procedure below.
  1. Remove the driver-side air bag module. (See DRIVER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION (TWO-STEP DEPLOYMENT : CONTROL SYSTEM) .)
  2. Connect the SSTs  (Adapter harness) to the driver-side air bag module as shown in Fig 1.

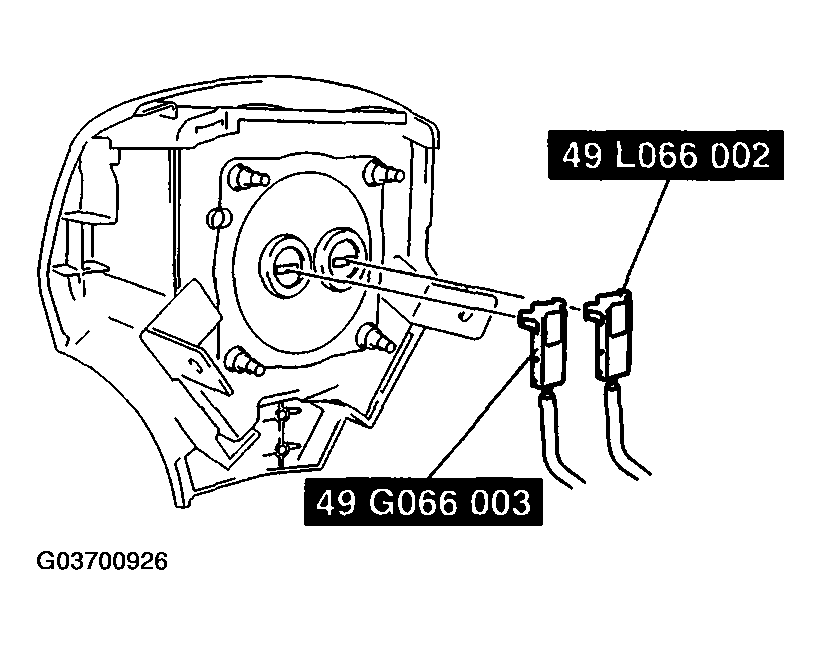

    Fig 1: Connecting SSTs (Adapter Harness) To Driver-Side Air Bag Module
    G03700926Courtesy of MAZDA MOTORS CORP.
  3. Place the driver-side air bag module on the center of the tire wheel with the padded surface facing up. To secure the air bag module to the tire wheel, wrap a wire (cross section 1.25 mm 2  {0.002 in 2  } or more)  through the wheel and the bolt installation holes of the air bag module at least 4 times.
    WARNING:
    • If the air bag module is not properly installed to the tire wheel, serious injury may occur when the module is operated (deployed). When installing the air bag module to the tire wheel, make sure the padded surface is facing up.
    Fig 2: Placing Driver-Side Air Bag Module On Center Of Tire Wheel
    G03700927Courtesy of MAZDA MOTORS CORP.
  4. Stack three tires without wheels on top of the tire with the driver-side air bag module, and then stack another tire with a wheel on the very top.
    Fig 3: Stacking Tires (For Driver-Side Air Bag Module Deployment)
    G03700928Courtesy of MAZDA MOTORS CORP.
  5. Secure the tires with wire.

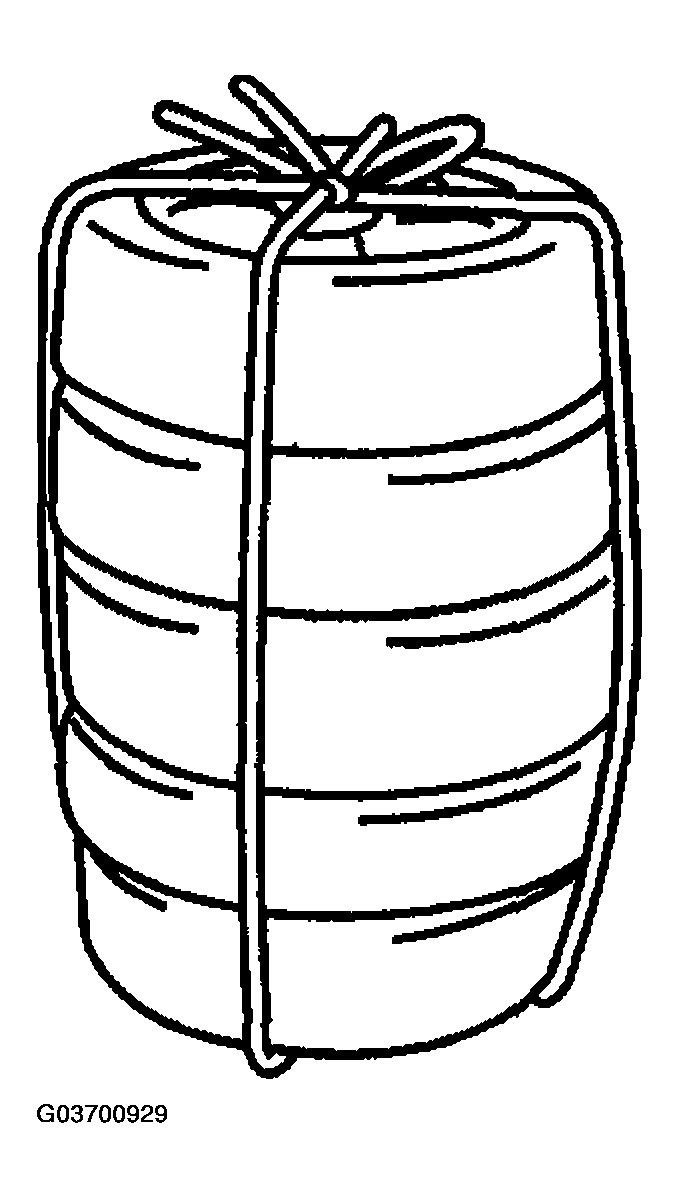

    Fig 4: Tying All Tires Together With Wire
    G03700929Courtesy of MAZDA MOTORS CORP.
  6. Connect the SSTs  (Deployment tool) to the SSTs  (Adapter harness).
    Fig 5: Connecting SST (Deployment Tool) To SST (Adapter Harness)
    G03700930Courtesy of MAZDA MOTORS CORP.
  7. Connect both SSTs  (Deployment tool) to the battery. Connect the power supply red clip to the positive battery terminal, and the black clip to the negative battery terminal.
  8. Verify that the red lamp on both SSTs  (Deployment tool) is illuminated.
  9. Verify that all persons are standing at least 6 m {20 ft}  away from the vehicle.
  10. Press the activation switch on the SST  (Deployment tool) connected with 49 L066 002 (a yellow connector) of the SST  (Adapter harness), and after 3 s  , press the activation switch on the other SST  (Deployment tool) to operate (deploy) the air bag module (both inflators).
    Fig 6: Identifying Activation Switch On SST (Deployment Tool)
    G03700931Courtesy of MAZDA MOTORS CORP.
    WARNING:
    • Verify that air bag module operation (explosive) sound occurs twice. If no operation (explosive) sound was heard or a single operation (explosive) sound was heard, both inflators would not have operated (deployed) properly. This may cause serious injury because the air bag module may operate (deploy) accidentally. If the two operation (explosive) sounds are not heard, perform Step 10 again. In case that the two operation (explosive) sounds in total are not verified even though Step 10 is performed again, leave the air bag module alone for 30 min or more before getting near it again.
    • The air bag module is very hot immediately after it is operated (deployed). You can be burned. Do not touch the air bag module for at least 15 min after deployment.
  11. Disconnect the SSTs  (Deployment tool) from the SSTs  (Adapter harness).
