Pre-tensioner seat belt

WARNING: This page is about a different car, the 2005 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

Remove the pre-tensioner seat belt.
Connect the SST (Adapter harness) to the pre-tensioner seat belt as shown in the figure.
WARNING:
- If the pre-tensioner seat belt is not properly installed to the tire, serious injury may occur when the pre-tensioner part is deployed. When installing the pre-tensioner seat belt to the tire, make sure the pre-tensioner part is inside the tire.
Fig 1: Connecting SST (Adapter Harness) To Pre-Tensioner Seat Belt
Courtesy of MAZDA MOTORS CORP.
With the pre-tensioner part inside the tire, tie the pre-tensioner seat belt to the tire. Wrap the wire harness through the tire and around the pre-tensioner seat belt at least four times.

Fig 2: Tying Pre-Tensioner Seat Belt To Tire
Courtesy of MAZDA MOTORS CORP.
Stack the tire with the pre-tensioner seat belt on top of two tires. Stack a tire on top of the three tires. Stack another tire that has a wheel on top of the four tires.

Fig 3: Stacking Tires (For Pre-Tensioner Seat Belt Deployment)
Courtesy of MAZDA MOTORS CORP.
Tie all tires together with wire.

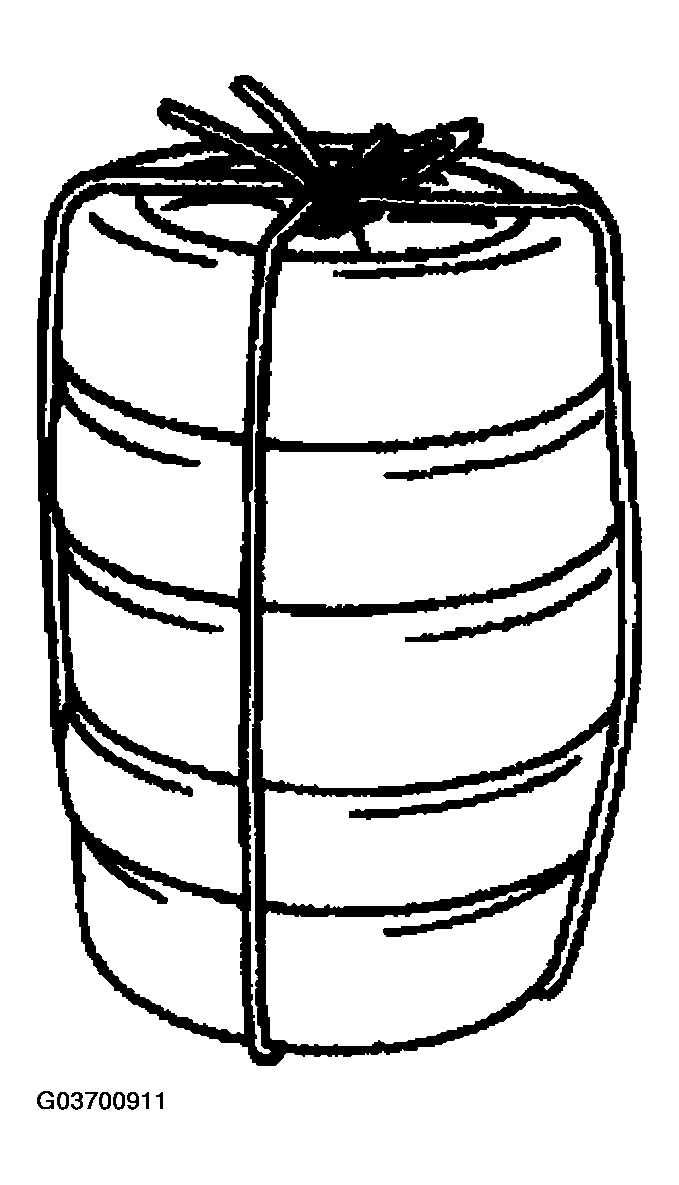

Fig 4: Tying All Tires Together With Wire
Courtesy of MAZDA MOTORS CORP.
Connect the SST (Deployment tool) to the SST (Adapter harness).

Fig 5: Connecting SST (Deployment Tool) To SST (Adapter Harness)
Courtesy of MAZDA MOTORS CORP.
Connect the red clip of the SST (Deployment tool) to the positive battery terminal and the black clip to the negative battery terminal.
Verify that the red light on the SST (Deployment tool) is illuminated.
Make sure all persons are standing at least 6 m {20 ft} from the vehicle.
Press the activation switch on the SST (Deployment tool) to deploy the pre-tensioner seat belt.

Fig 6: Identifying Activation Switch On SST (Deployment Tool)
Courtesy of MAZDA MOTORS CORP.
