Side air bag module

WARNING: This page is about a different car, the 2005 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the side air bag module connector.
  2. Connect the SST  (Adapter harness) to the side air bag module.
    Fig 1: Disconnecting Side Airbag Module And Connecting SST To Side Airbag Module
    G03700882Courtesy of MAZDA MOTORS CORP.
  3. Connect the SST  (Deployment tool) to the SST  (Adapter harness).

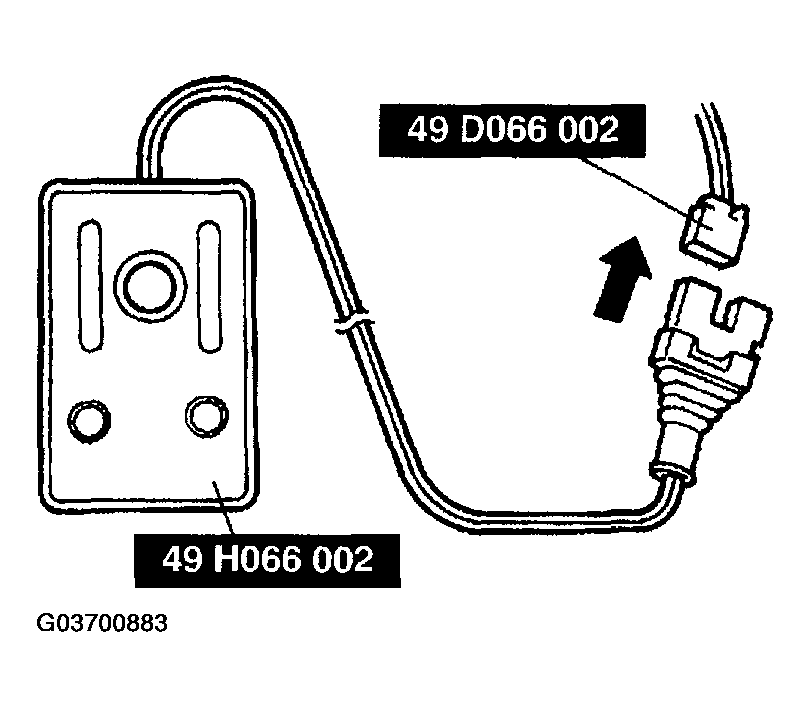

    Fig 2: Connecting SST (Deployment Tool) To SST (Adapter Harness)
    G03700883Courtesy of MAZDA MOTORS CORP.
  4. Connect the red clip of the SST  (Deployment tool) to the positive battery terminal and the black clip to the negative battery terminal.
  5. Verify that the red light on the SST  (Deployment tool) is illuminated.
  6. Make sure all persons are standing at least 6 m {20 ft}  from the vehicle.
  7. Press the activation switch on the SST  (Deployment tool) to deploy the side air bag module.
    Fig 3: Identifying Activation Switch On SST (Deployment Tool)
    G03700884Courtesy of MAZDA MOTORS CORP.
