Removal (LA4A-EL)

WARNING: This page is about a different car, the 2002 Mazda 626. However, it is still accessible from the selected car via links, so may be relevant.

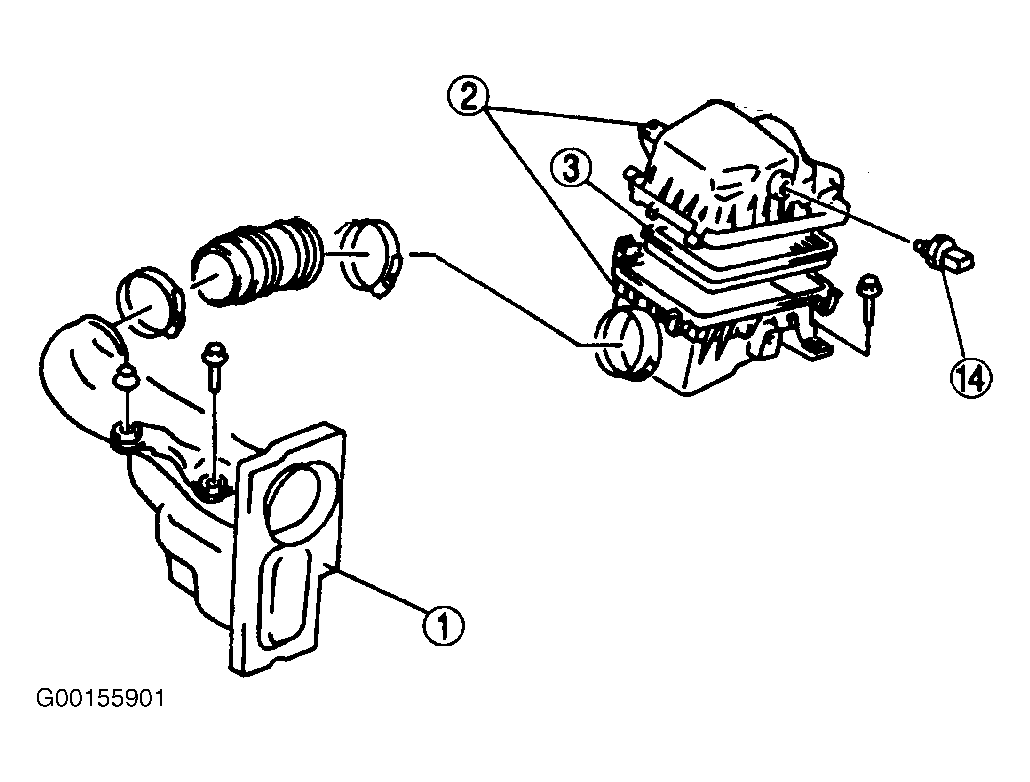

Disconnect the negative and positive battery cables. Remove the battery hold down (1), battery and battery tray (2). See Fig 1 . Remove the fresh-air duct and air cleaner assembly. See Figure . Disconnect the Transaxle Range (TR) switch harness connector. Remove the TR switch. See Fig 2 .

Fig 1: Removing & Installing Battery Tray (LA4A-EL)

Courtesy of MAZDA MOTORS CORP.

Fig 2: Removing & Installing Transaxle Range Switch (LA4A-EL)

Courtesy of MAZDA MOTORS CORP.
